997 Rear Logo Placement

Loren
 Share

Recommended Posts

  • Admin
Loren Member

Loren

Posted
  • Admin
Posted (edited)

997


1. Find the middle of the lid.

2. Position logo Carrera with the dimensions A and C Carrera logo dimension 129.6 mm+/−1 mm and B Carrera logo dimension 45 mm−1 mm and stick on lid.

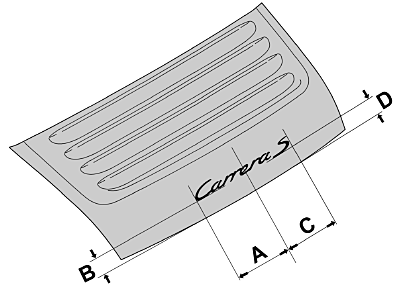

997S


1. Find the middle of the lid.

2. Position logo Carrera with the dimensions A Carrera S logo dimension 175.6 mm+/−1 mm and B Carrera S logo distance 45 mm−1 mm and stick on lid.

3. Position logo S with the dimensions C Carrera S logo dimension 175.6 mm+/−1 mm and D Carrera S logo distance 39 mm+/−1 mm and stick on rear lid.

9974S


1. Find the middle of the lid.

2. Position logo Carrera with the dimensions A Dimension: 175.6 mm +/-1 mm and B distance: 45 mm -1 mm and stick on lid.

3. Position logo 4 with the dimensions C Dimension: 19 mm +/-1 mm and D Dimension: 2 mm +/-1 mm and stick on rear lid.

4. Position logo S with the dimensions E Dimension: 190 mm +/-1 mm and F Dimension: 3 mm and stick on rear lid.

Edited by Loren
Added C4S
  • Upvote 1
  • Admin
Loren Member

Loren

Posted
  • Author
  • Admin
Posted
Do you have this type of a diagram for any 996's, like a C4S or a Turbo?

Yeah, if you do a search here they were posted quite a while ago. Here are a couple... Also, I have but have not posted GT3, GT3 RS, Forty fast years (911), Targa, and early and late C4's. I didn't see C4S but it just may be in a different place.

MY02-on Carrera coupe

up to model year 2001

  • 1 month later...
  • Admin
Loren Member

Loren

Posted
  • Author
  • Admin
Posted
Can you post for the 911 40th anniversary placement?  Thanks!

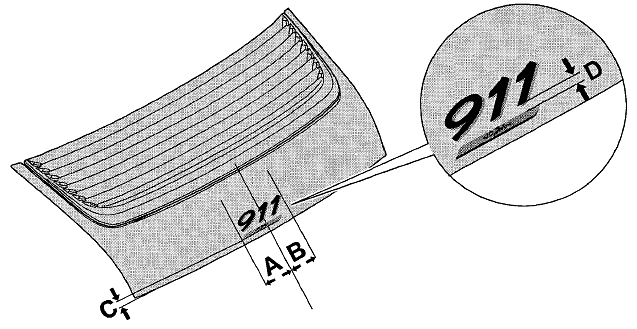

40th Anniversary logo placement


1. Find the middle of the lid.

2. Position the Forty fast years logo with the dimensions A and B = 124 ±2 mm, C = 20 ±0.5 mm- and D = 8.5 mm on the rear lid and affix.

  • 2 years later...
  • Admin
Loren Member

Loren

Posted
  • Author
  • Admin
Posted
Loren, what is the angle for each number?
See the A and B dimensions? and D is the flat at the bottom of the ones. That sets them at the proper angle and distance.
Gabriel Member

Gabriel

Posted
Posted (edited)

Sorry, I'm afraid I don't follow that. A and B gives me the left and right alignment of the leftmost part of the 9 and the rightmost part of the right 1. In what way does that give me the angle of each number? And then, what about the middle 1? I apologize if I'm missing something...

....

After looking deeper into this, it appears these logos come on a sheet of paper when new, so the placement and angle of each number is by definition correct. What I have is the three numbers by themselves, so that makes proper placement much more complicated as I need to stick them one at a time.

Edited by Gabriel
  • 4 months later...
shocky Member

shocky

Posted
Posted
Sorry, I'm afraid I don't follow that. A and B gives me the left and right alignment of the leftmost part of the 9 and the rightmost part of the right 1. In what way does that give me the angle of each number? And then, what about the middle 1? I apologize if I'm missing something...

....

After looking deeper into this, it appears these logos come on a sheet of paper when new, so the placement and angle of each number is by definition correct. What I have is the three numbers by themselves, so that makes proper placement much more complicated as I need to stick them one at a time.

shocky Member

shocky

Posted
Posted
Sorry, I'm afraid I don't follow that. A and B gives me the left and right alignment of the leftmost part of the 9 and the rightmost part of the right 1. In what way does that give me the angle of each number? And then, what about the middle 1? I apologize if I'm missing something...

....

After looking deeper into this, it appears these logos come on a sheet of paper when new, so the placement and angle of each number is by definition correct. What I have is the three numbers by themselves, so that makes proper placement much more complicated as I need to stick them one at a time.

shocky Member

shocky

Posted
Posted

Bought the " 911 " for the the 993 in black. Painted it in silver to match the original Carrera logo. Looks OEM to me. Cost me all of $35 vs over $200 for the chrome one!

  • 2 months later...
belfastgt3 Member

belfastgt3

Posted
Posted
Do you have this type of a diagram for any 996's, like a C4S or a Turbo?

Yeah, if you do a search here they were posted quite a while ago. Here are a couple... Also, I have but have not posted GT3, GT3 RS, Forty fast years (911), Targa, and early and late C4's. I didn't see C4S but it just may be in a different place.

MY02-on Carrera coupe

up to model year 2001

Loren

Can you post location of 997 Carrera 4 S positions.

Thanks

gandrade1 Member

gandrade1

Posted
Posted

I wanted to place the 986 emblem on my Boxster, but I believe there was no OEM release with that emblem...

Anyway, I thought it was worth it a try.

Does anyone have the diagrams for the 986?

All the best,

Gus

  • Admin
Loren Member

Loren

Posted
  • Author
  • Admin
Posted
I wanted to place the 986 emblem on my Boxster, but I believe there was no OEM release with that emblem...

Anyway, I thought it was worth it a try.

Does anyone have the diagrams for the 986?

All the best,

Gus

Did you look in the Boxster section? It's pinned there.

Boxster logo placement

  • Admin
Loren Member

Loren

Posted
  • Author
  • Admin
Posted
Do you have this type of a diagram for any 996's, like a C4S or a Turbo?

Yeah, if you do a search here they were posted quite a while ago. Here are a couple... Also, I have but have not posted GT3, GT3 RS, Forty fast years (911), Targa, and early and late C4's. I didn't see C4S but it just may be in a different place.

MY02-on Carrera coupe

up to model year 2001

Loren

Can you post location of 997 Carrera 4 S positions.

Thanks

I have added it to the original post.

  • 4 weeks later...
scott449 Member

scott449

Posted
Posted

Great info thanks but where can i find the parts on line

looking for a 996 carrera C4S

997


1. Find the middle of the lid.

2. Position logo Carrera with the dimensions A and C Carrera logo dimension 129.6 mm+/−1 mm and B Carrera logo dimension 45 mm−1 mm and stick on lid.

997S


1. Find the middle of the lid.

2. Position logo Carrera with the dimensions A Carrera S logo dimension 175.6 mm+/−1 mm and B Carrera S logo distance 45 mm−1 mm and stick on lid.

3. Position logo S with the dimensions C Carrera S logo dimension 175.6 mm+/−1 mm and D Carrera S logo distance 39 mm+/−1 mm and stick on rear lid.

9974S


1. Find the middle of the lid.

2. Position logo Carrera with the dimensions A Dimension: 175.6 mm +/-1 mm and B distance: 45 mm -1 mm and stick on lid.

3. Position logo 4 with the dimensions C Dimension: 19 mm +/-1 mm and D Dimension: 2 mm +/-1 mm and stick on rear lid.

4. Position logo S with the dimensions E Dimension: 190 mm +/-1 mm and F Dimension: 3 mm and stick on rear lid.
