Diagram of relay 2008 Cayman S

[jbirkett]

My first post on this site. I have been searching on several forums trying to find the location and access for the relays. I've been able to find the location and am just starting to dig into how to access them. To  find out which relay panel I really need to get at I'd like to know which relays are in the panels. Found one panel up under the dash (drivers side) which looks like it will be the most difficult to get at (maybe need to remove the lower dash panel to access that one). The other appears to be in the rear behind the carpet on right side of trunk.

Any help here would be appreciated.

Thanks,

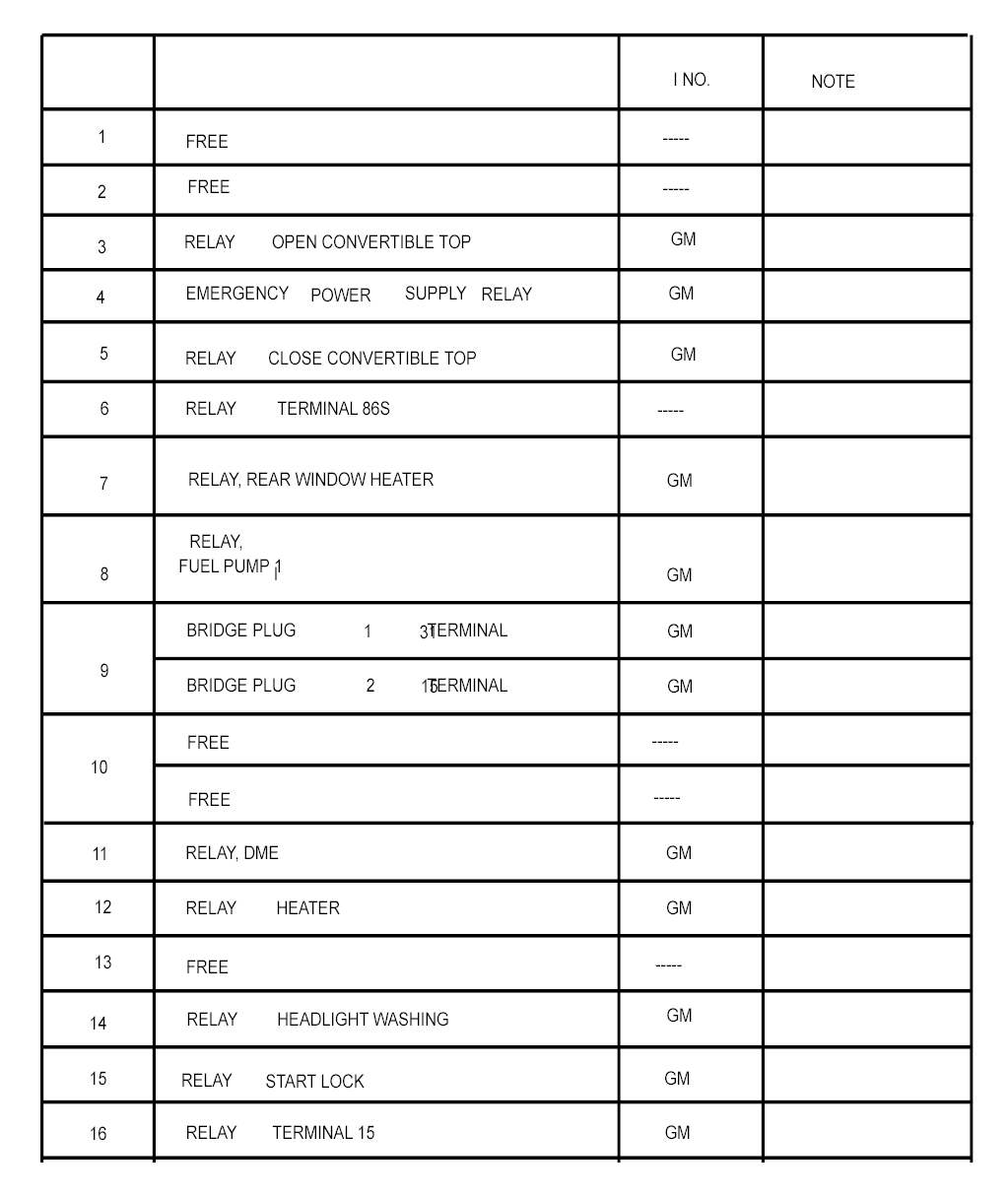

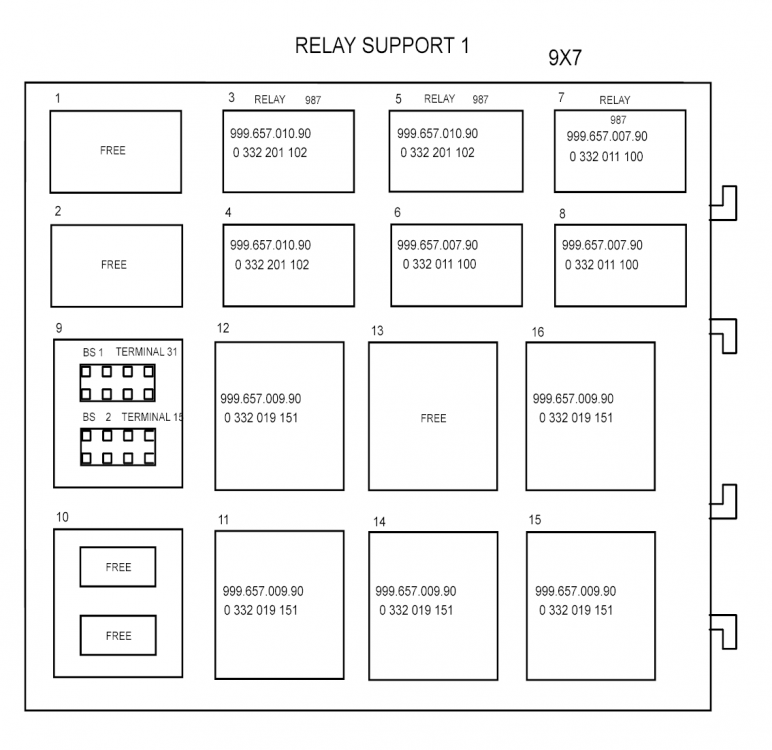

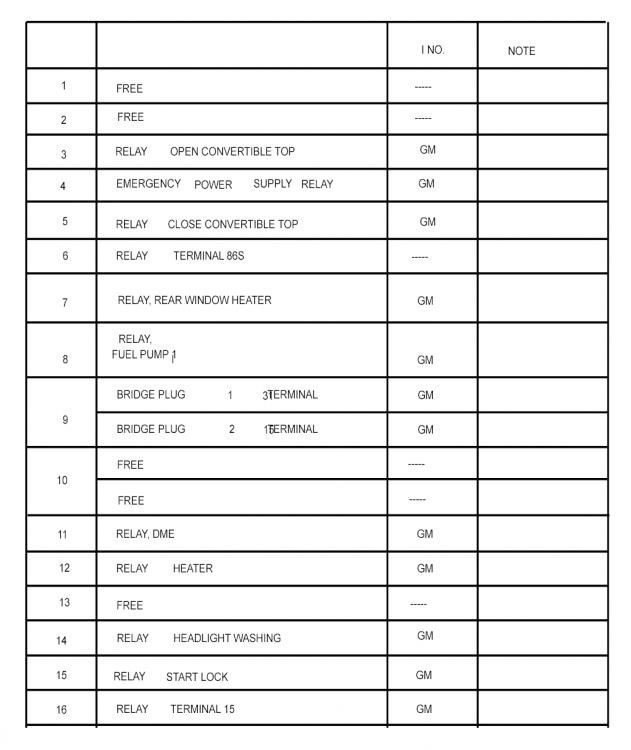

[Loren]







[jbirkett]

40 minutes ago, Loren said:









[jbirkett]

Thank you so much.



[ab987]

where is the DME relay located in a Boxster 987.1



thanks very much



art

[Loren]

8 hours ago, ab987 said:

where is the DME relay located in a Boxster 987.1



thanks very much



art



In the engine compartment - front left side.

[Jim Long]

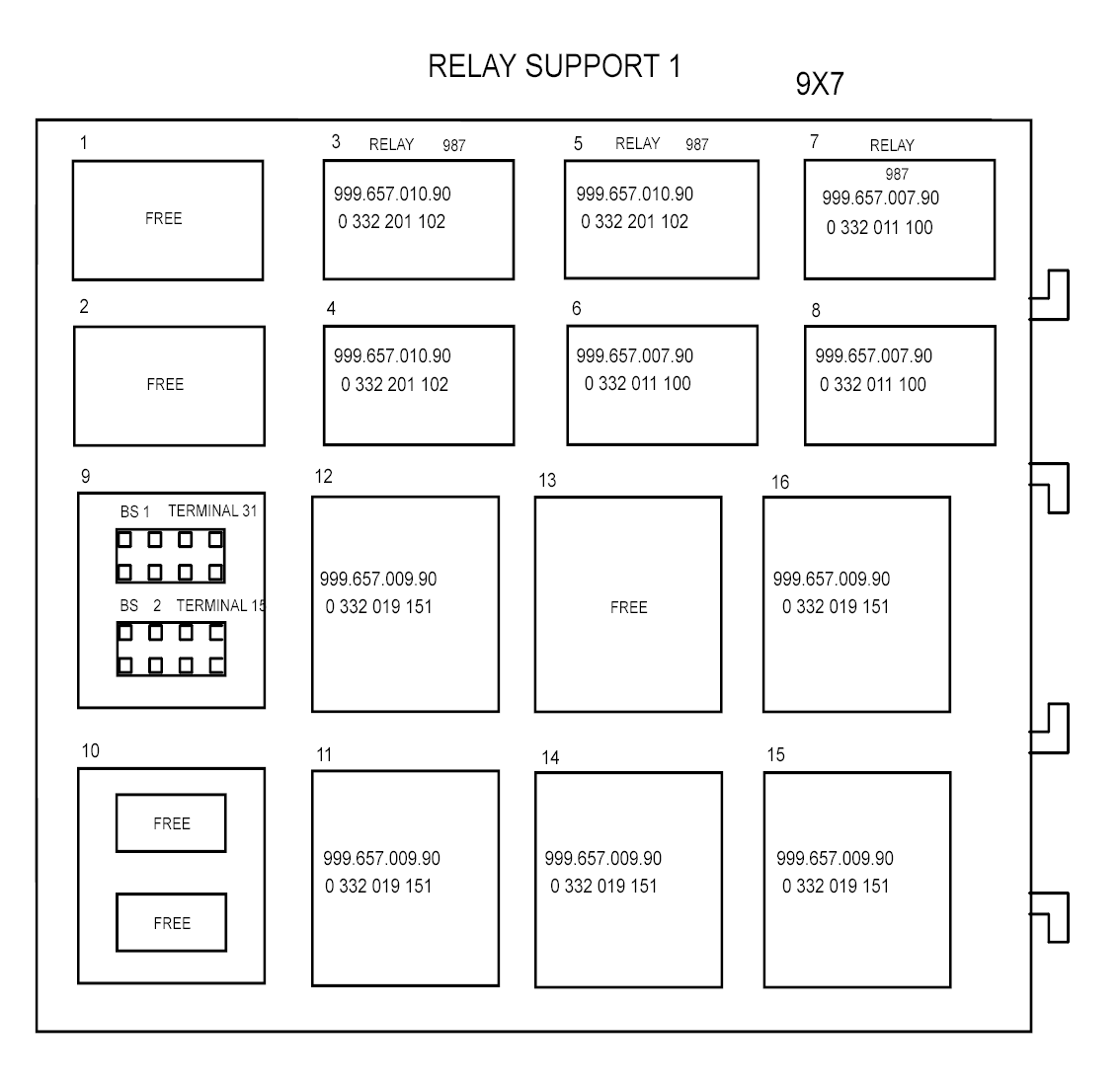

And where exactly are the locations of relay support 1 and relay support 2 within the 987.1?



Are these the correct locations?: "Found one panel up under the dash (drivers side) which looks like it will be the most difficult to get at (maybe need to remove the lower dash panel to access that one). The other appears to be in the rear, behind the carpet on right side of trunk."

Edited July 31, 2022 by Jim Long

[ab987]

On 6/23/2022 at 8:37 PM, ab987 said:

where is the DME relay located in a Boxster 987.1



thanks very much



art

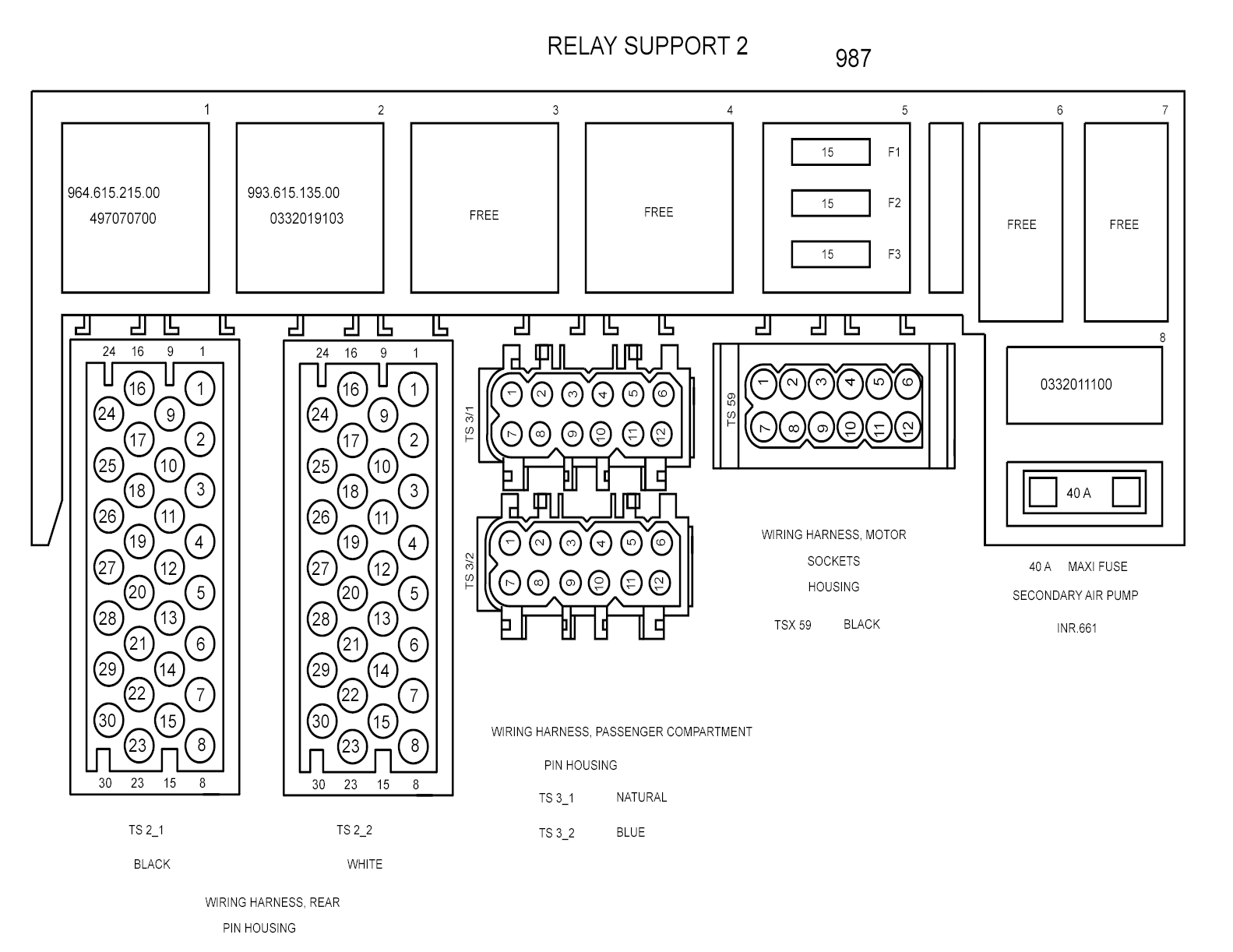

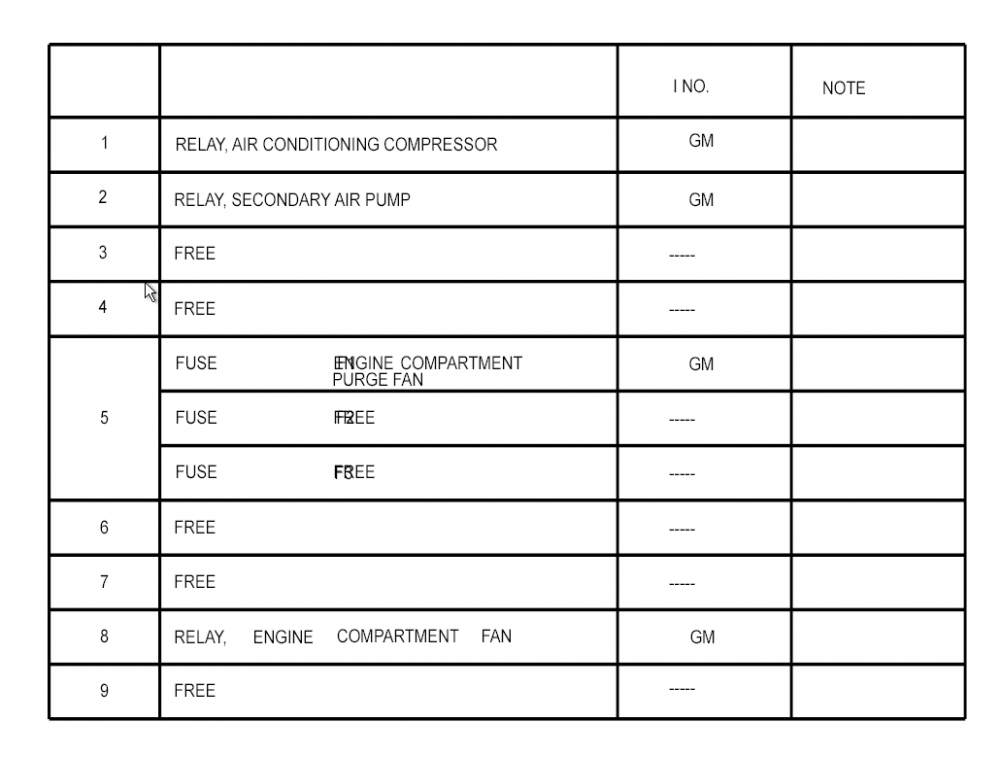

In my 2008 Boxster S, the relay support 2 is in trunk left(drivers side) left corner open the upholstery cover on the left. A track pulls it down into the trunk. Be careful. It will jamb . It is like a roller coaster track. very easy to cut your fingers
