Lug/Stud Problem

[vza]

Well.... I painted some lugs and when replacing one my awful torque wrench from Harbor Freight didn't click(not the 1st time)....first off Im returning 2 of them on Monday. The lug/stud is just spinning and I can't back it out. Any tips as to how to get it out? Thanks V

[Loren]

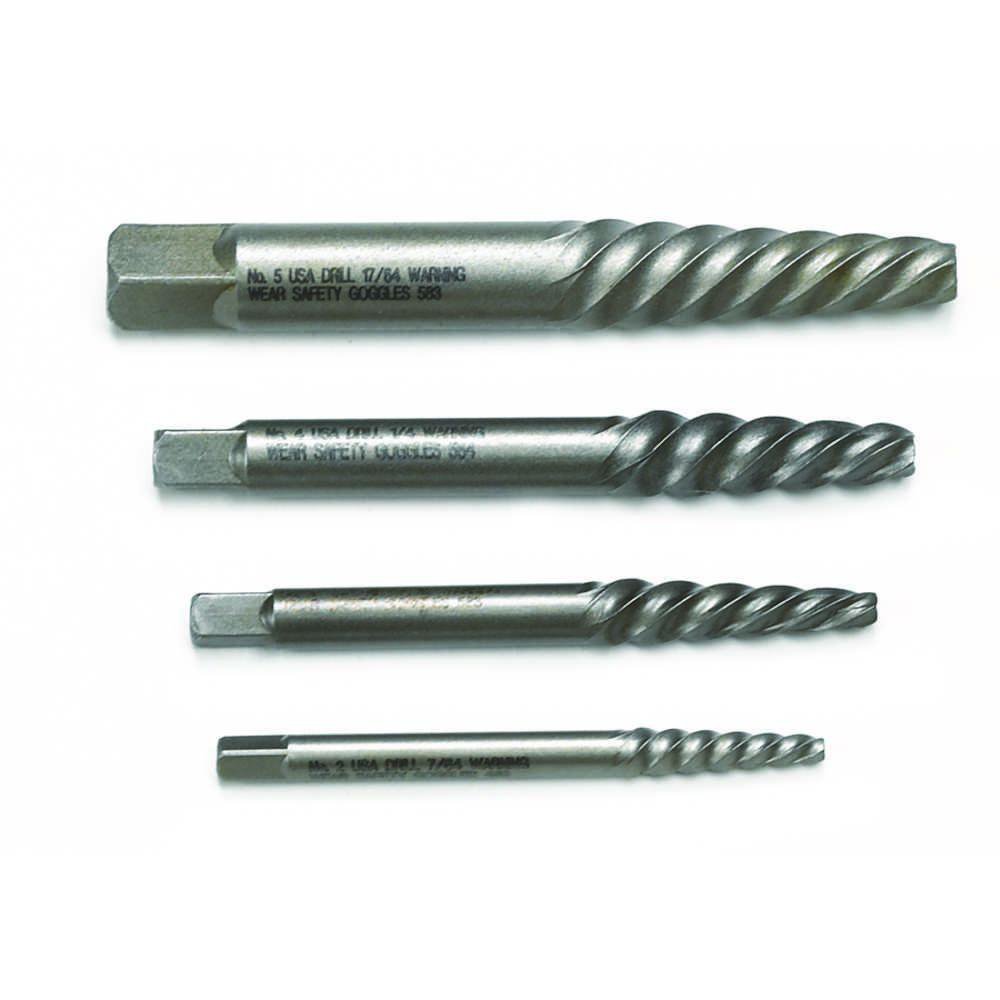

Easy-out





[vza]

Its loose already....spinning in the wheel.

[vza]

Okay..... I dodged the 1st bullet and didn't have to drill. I removed all the lugs with the exception of the one that was spinning and wedged a small pry bar between the spacer and drum pressed down on the bottom of the wheel with my feet and got my impact on it and zipped it out .....5 minutes. BUT....the 1st 3 treads on the bore are stripped I can't get the bolt started. The remaining 80% or more of the bore is good. Would running a chase through the bore be okay.....dont really want to replace the hub at this point. As long as I can torque it down to spec I imagine I'm good.....V

[JFP in PA]

1 hour ago, vza said:

Okay..... I dodged the 1st bullet and didn't have to drill. I removed all the lugs with the exception of the one that was spinning and wedged a small pry bar between the spacer and drum pressed down on the bottom of the wheel with my feet and got my impact on it and zipped it out .....5 minutes. BUT....the 1st 3 treads on the bore are stripped I can't get the bolt started. The remaining 80% or more of the bore is good. Would running a chase through the bore be okay.....dont really want to replace the hub at this point. As long as I can torque it down to spec I imagine I'm good.....V



I see a Time-Sert threaded insert in your future...….

[vza]

OK ....well here's an update. Upon closer investigation I didn't over torque the lug....I believe it was previously weakened and damaged already. The previous owner had 7mm spacers on the rear wheels and didn't upgrade to extended lug studs so the existing stock stocks were 7mm too short and just about catching the bore in the hubs. I did manage to clean the one bore out with a tap. I then removed the spacers and got good torque at 96 Ft Lbs on all lugs. Did auto cross last week without knowing this info .....ouch!! V
