Variocam plus in detail - free programmable ECU

[Olli.D]

Hello together from germany.

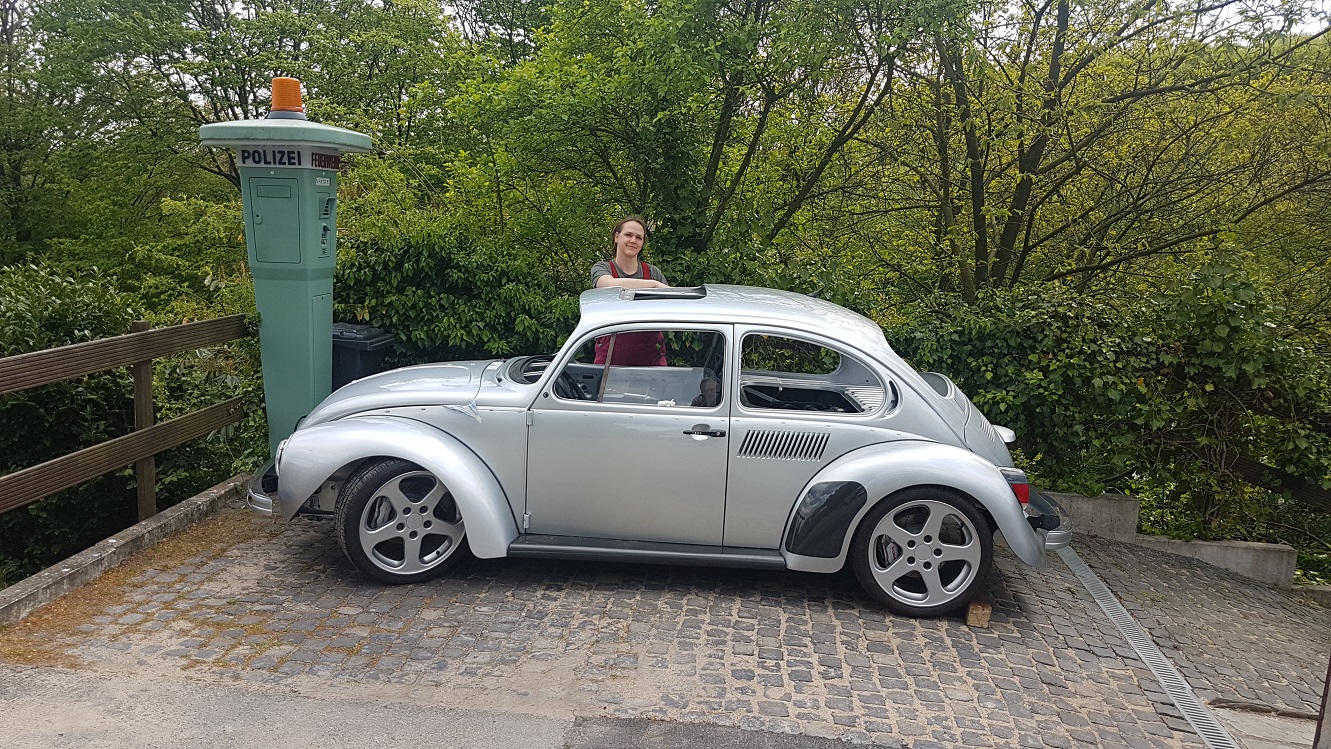

M96.05 is in a VW Beetle 72, as a middle engine with Boxster S Transmission.

There is placed a free programmable ECU Ecumaster black.

I would be really happy to receive some important information:



- parameters, if valve lift is low or high



- variocam is not only retard-advanced, like models before, but stageless (i think there are 3 or more stages definied)

how does the activation work to the solenoid? With one cable, should be PWM. It would be helpful to know the frequency of the PWM.

Sadly, i have no car available to test around and measure...

A map for the cam adjust would be very helpful.



- ignition maps would be perfect, in dependence of Valve lift and cam advance and everything ;-)



If you cannot help me with the detailed information, i would start like:



- soft ignition table

- valve lift high from 1800rpm to the end (take/give 100rpm)

- cam advance from 1500-5500rpm, going more advance in the middle of that



What do you think of start like that?



Regards,

Olli



[piethein]

On 9.11.2017 at 9:51 AM, Olli.D said:

variocam is not only retard-advanced, like models before, but stageless (i think there are 3 or more stages definied)

how does the activation work to the solenoid? With one cable, should be PWM. It would be helpful to know the frequency of the PWM.

Sadly, i have no car available to test around and measure...

A map for the cam adjust would be very helpful.

Hello Olli,



One manual states 4ms PWM (250Hz) 0-12V.



I have seen a valve lift and intake cam advance table only for the turbo.



BR,

Jussi

Edited January 7, 2018 by piethein
copyrighted materials removed

[Loren]

Please do not post copyrighted materials (or links to them) here.

Please re-read the board Guidelines/Rules that you agreed to when you registered here.

[piethein]

My bad.

Thanks for clearing the link.

Modified my post.



BR,

Jussi
