Wheel Alignment - Cayenne GTS 9PA1 (957) air suspension

[12runner]

Hello everybody,

I am looking for the setting values for the wheel alignment on a Cayenne GTS 9PA1 (957) with air suspension.
MY2010 (2009-12)

Thanks in advance.

Edited September 15, 2017 by 12runner

[Loren]

Vehicle ride height is dependant on wheel size. What size wheels do you have?

[12runner]

original 21"

need wheel alignment values:

FRONT

Caster

Camber

individual Toe

total Toe



REAR

Camber

individual Toe

total Toe



Edited September 16, 2017 by 12runner

[Loren]

Ride height

Front: 190 +-10 mm (From wheel contact area to bottom edge suspension subframe wheel center)

Rear: 236 +-10 mm (From wheel contact area to bottom edge suspension subframe wheel center)



[12runner]

thanks Loren,
these are the values for normal air suspension (springs),
but the GTS is lower, ca. -20m front  ca.-10mm rear, so the values should be different?

[Loren]

1 hour ago, 12runner said:

thanks Loren,
these are the values for normal air suspension (springs),
but the GTS is lower, ca. -20m front  ca.-10mm rear, so the values should be different?



Yes, ride height will be different (Likely 20 mm lower front and 10 mm lower rear).



Verbatim from my (2011 version) Porsche Cayenne factory service manual...

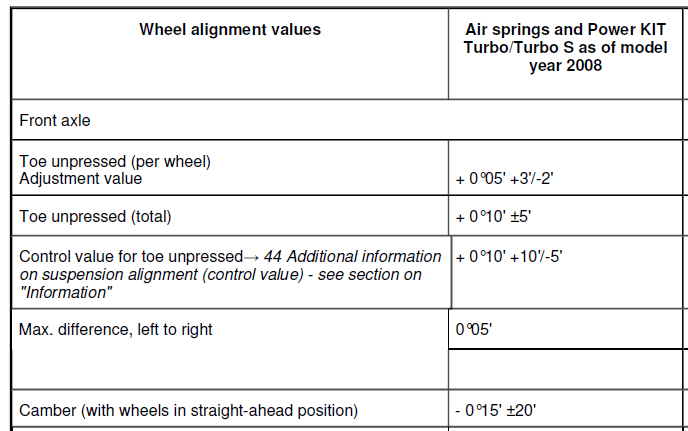

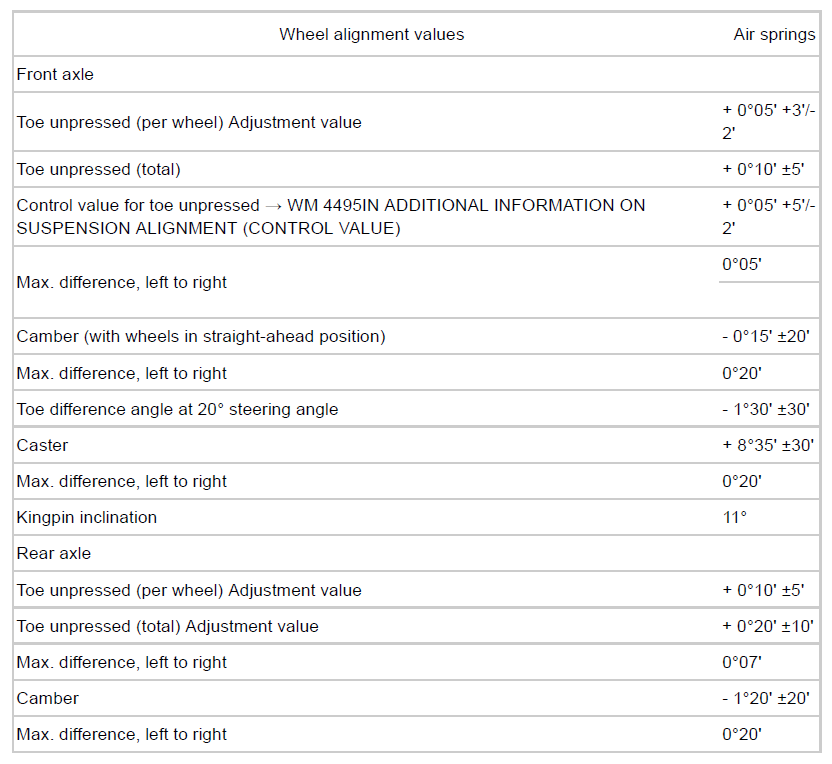

WM 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT (CAYENNE, CAYENNE GTS, CAYENNE S HYBRID, CAYENNE S E, CAYENNE TURBO) > ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT > WHEEL ALIGNMENT VALUES, AIR SPRINGS
