2011 911 Carrera S Water Damage

[BENC911]

Hello,

I need help/direction with fixing my new car. As the title said, it was a salvage car with flood damage so i replace the fuse box first 99761034100 i put a picture below. The one i purchased came from another car and still had the cables attached so the pairing of my old bad one to the new one was like 95% easy matching.



After the process of cutting,splicing and reattaching mostly everything worked! However, the autolocks and alarm is not working. Not sure what to do! Also, a few of the cables that came as part of the new fuse box, i was not able to connect! Not sure if that is right.



So the question is how can i find out which cable(s) needed to be connected such that the auto lock, alarm, seats work?  I found online a few diagrams but they do not point out which fuses or cables control those pieces.



Thanks a million in advance, i heard great things about this group!

[JFP in PA]

Welcome to RennTech



It always helps to have the model and year of the car when asking this type of question as the cars vary over time.



More than likely, your locking issue is related to the water immersion as the locking and security systems are controlled by a small computer located under the driver's seat on most models.  Sometimes this box can be dried out, but not always.

[BENC911]

Thanks will try that!



The car is 2011 911 carrera S

[BENC911]

does anyone have a chart of fuses to function? for example, cigarette lighter is position X in fuse box Y

[Loren]

There should be a fuse map in the door covering the fuses.

[BENC911]

Thanks Loren but mine doesn't have it, i guess one of the items that were damaged.

[Loren]

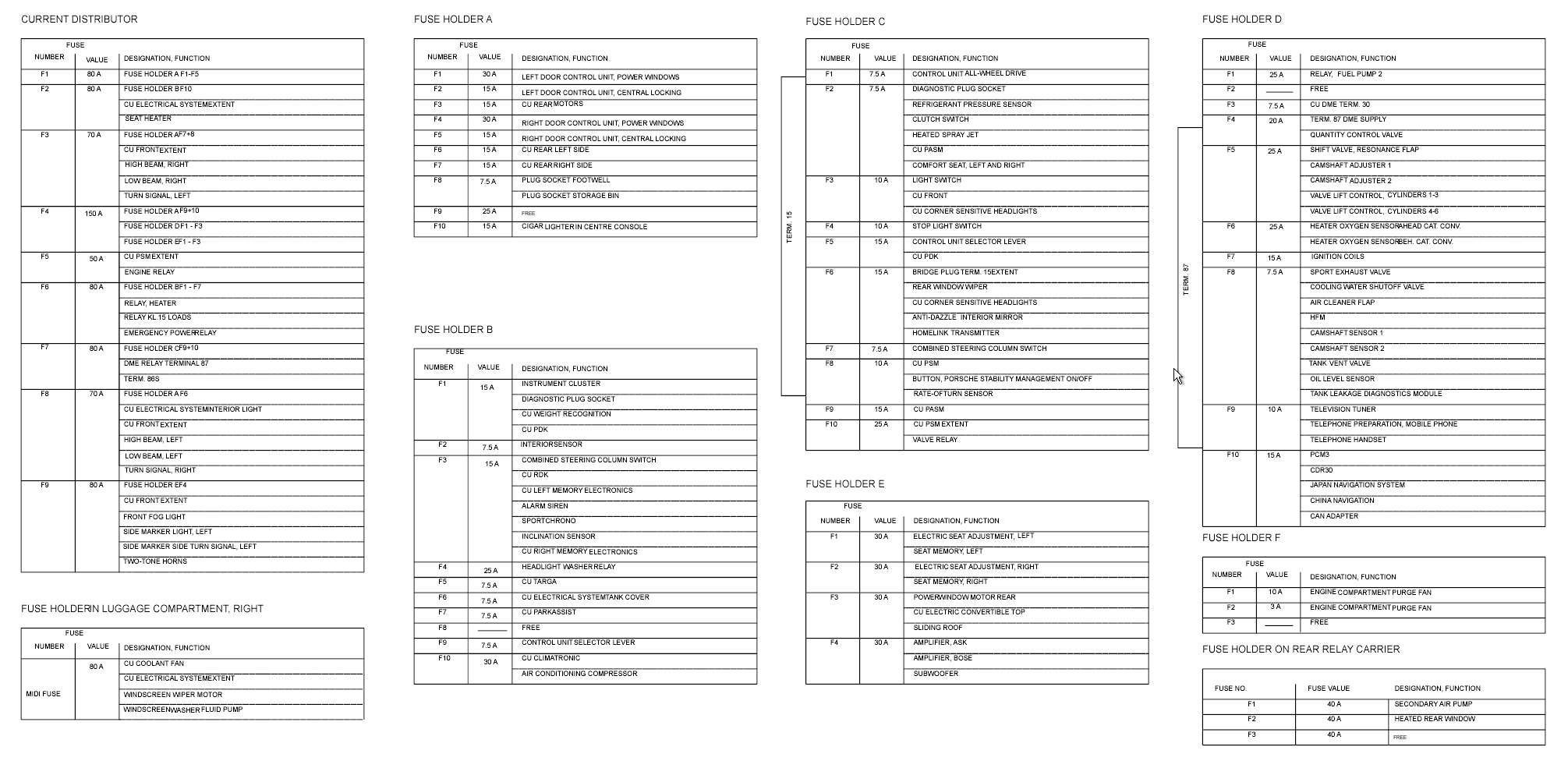

Download and open...



[BENC911]

that is awesome, thanks!
