Additional High Beam Lights 2005 Cayenne Turbo

[omolddesign]

I have not been able to get my additional high beams to come on. I have checked bulbs replaced a failing headlamp harness, replaced the broken mounting bracket and tested contacts. I examined the headlight unit and discovered the additional lamps are not controlled by the ballast. I tested the corresponding terminals but got no voltage terminals 5 and 7. The main lamps do lift up for high beam and the corner lamps go out but the addition halogen H7 lamps do not come on.

I also pulled the 40amp fuse from the left fuse panel as I read this would reset the lights.

Am I missing a relay that turns them on external to the headlight unit? I have no wiring diagram so I am at a loss. Is this something that is programmable through the OBD2?

Any help would be appreciated many thanks.



I have run diagnostics and have the following error:



02088 - Lights for Auxiliary High Beams
            007 - Short to Ground - Intermittent

Edited April 27, 2015 by omolddesign

[deilenberger]

I assume by "additional high beams" you mean the halogen flash-to-pass beams?  With bi-xenon lights they aren't supposed to come on. They are used for flashing when the HID's aren't on, and DLR's - and not much else.

Edited April 27, 2015 by deilenberger

[omolddesign]

I assume by "additional high beams" you mean the halogen flash-to-pass beams?  With bi-xenon lights they aren't supposed to come on. They are used for flashing when the HID's aren't on, and DLR's - and not much else.

Interesting idea but not true according to the diagnostics, giving a high beam error. The HID's are meant to fill the gap when the bi-xenon's point up. Thanks anyway



I have run diagnostics and have the following error:



02088 - Lights for Auxiliary High Beams

            007 - Short to Ground - Intermittent

Edited April 27, 2015 by omolddesign

[omolddesign]

Resolved

There was a missing fuse on the RH fuse box all clear and fully functioning.

[Ricky1]

Which fuse number was that?  My driver's side additional high beam is not working... thanks in advance.

[lewisweller]

2 hours ago, Ricky1 said:

Which fuse number was that?  My driver's side additional high beam is not working... thanks in advance.

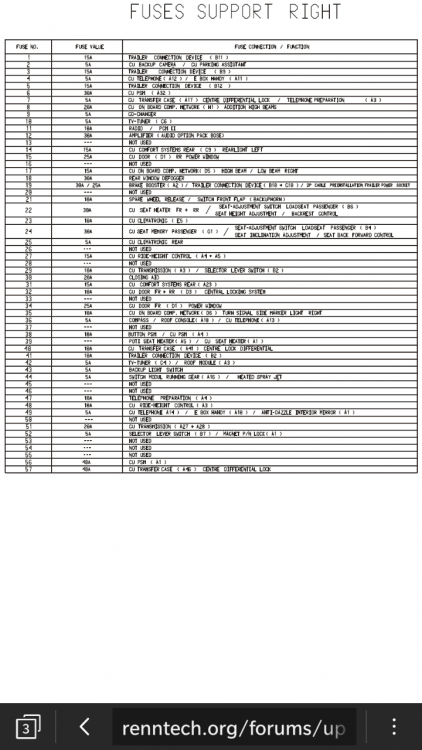

Try fuse number 8, 20amp.
