PSE button wiring ?

[d0lph1n]

Is the Sport or PSE button connected directly to DME? Where can I find more info about the wiring?

Edited March 14, 2015 by d0lph1n

[JFP in PA]

Is the PSE button connected directly to DME? Where can I find more info about the PSE button wiring?



Year and model is always helpful.  You would need the car's wiring diagrams.  The Bentley manual has a set for most 996's.

[AP 997S]

If it's a factory installed PSE then I believe the PSE switch is connected to the DME.  I believe I have a PDF of the 997 install technical bulletin which shows the direct connection to the DME. If you want it send me your email address via a PM and I'll try to find it and send it to you.

[d0lph1n]



Is the PSE button connected directly to DME? Where can I find more info about the PSE button wiring?



Year and model is always helpful.  You would need the car's wiring diagrams.  The Bentley manual has a set for most 996's.





It's a 2005 C2, Sport Chrono package. I have the 101 Projects book, I'll check it later. Meantime, I've checked the 996 2002-2205 which is supposed to have the same DME version. I couldn't find the PSE switch pins.



If it's a factory installed PSE then I believe the PSE switch is connected to the DME.  I believe I have a PDF of the 997 install technical bulletin which shows the direct connection to the DME. If you want it send me your email address via a PM and I'll try to find it and send it to you.



The car came with factory installed Sport Chrono but without PSE mufflers. As far as I understand, the mufflers were not available at that time. I installed the mufflers (2nd hand) & wiring+valve (new). I'll PM you asap.

Edited March 14, 2015 by d0lph1n

[d0lph1n]

My goal is to tap into to PSE or Sport mode switch= > install a relay; if PSE/Sport button ON the relay will disconnect the PSE solenoid from DME...so the PSE exhaust will remain ON all the time, as long as the PSE button is ON.

Edited March 14, 2015 by d0lph1n

[d0lph1n]

I think I need the Sport Chrono install pdf. Do you know where I could find it?

[Porschetech3]

I think if you defeat the DME in this manor you will set a DTC fault (although the check engine light will not illuminate) . The DME looks to the solenoid for resistance checks on start up to see if any wiring , solenoid , resistance failures are in the circuit. The only ways to have the PSE on all the time without setting DTC's are (1) to disconnect the vacuum lines ,(leaving the electrical" as is") or (2)to add another control system like wireless remote to control the PSE . I have a wireless remote that I use for Sound Symposer Retrofit kit for 996 997.1 that will work for PSE also. I'll attach a picture and can visit my website at www.bansheestethoscope.com for more pictures and info . Best regards

[Porschetech3]

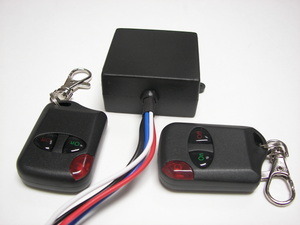

Attached is a picture of the wireless remote that I use in the Sound Symposer Retrofit 996 997.1 . It is small key-fob type with credit card size waterproof receiver , would work to control PSE also.

[d0lph1n]

I think if you defeat the DME in this manor you will set a DTC fault (although the check engine light will not illuminate) . The DME looks to the solenoid for resistance checks on start up to see if any wiring , solenoid , resistance failures are in the circuit. The only ways to have the PSE on all the time without setting DTC's are (1) to disconnect the vacuum lines ,(leaving the electrical" as is") or (2)to add another control system like wireless remote to control the PSE . I have a wireless remote that I use for Sound Symposer Retrofit kit for 996 997.1 that will work for PSE also. I'll attach a picture and can visit my website at www.bansheestethoscope.com for more pictures and info . Best regards





I see, I'm familiar with the wireless solution but I'm not familiar with a DTC fault. A lot of people recommend disconnecting the wire harness from solenoid. Anyway, as I mentioned earlier, my goal is to install a relay that does the followings:

1. Detects PSE or Sport Mode button ON (Ex: PSE button's LED light)

2. Switches off the DME connections to solenoid simulating a solenoid's harness removal. If what you say about DTC fault is true then instead of switching off the connection to the solenoid, the relay could swithc it to a  fake resistance (same value as solenoid's). No need for a wireless or wired 12V alternative circuit.



My car 2005 C2 (no-PASM), came from factory with the Sport Chrono package (Sport button) but without PSE mufflers, solenoid etc. What I'm trying to say, the PSE worked fine withtout a solenoid until I purchased it and installed a solenoid and PSE mufflers etc.

Edited March 14, 2015 by d0lph1n

[Porschetech3]

Disconnecting the solenoid does cause a DTC (although does not turn on the CEL) the DTC is there next time you run the scan . Although some solenoids disconnected, like the one on the air cleaner ,for Helmholtz resonator will set a background DTC and ALSO disable sport button . Switching to a resistance of equal value WILL satisfy the DME and not set DTC if the switch can be done instantaneous , with no drop or rise in resistance . Give it a try , it just may work!!

[Porschetech3]

If your car did not come with PSE mufflers ,solenoid,  wiring , then your DME is not enabled for PSE and will not look for resistance , or control the solenoid until its enabled . I believe your car has the button built into the A/C control and sends the signal over CAN line to DME. I think  the wireless solution is the best way for you to go.

[d0lph1n]

If your car did not come with PSE mufflers ,solenoid,  wiring , then your DME is not enabled for PSE and will not look for resistance , or control the solenoid until its enabled . I believe your car has the button built into the A/C control and sends the signal over CAN line to DME. I think  the wireless solution is the best way for you to go.



I've been driving all day with the solenoid disconnected. I did a check few minutes ago, the obd scan reports zero errors.

Re: the wireless solution, if the Sport mode switch is not connected directly to DME, I might integrate it with my idea, if I'll be able to make the relay control the wireless remote.



Having an extra button to push is no good ;)...for me.

Edited March 14, 2015 by d0lph1n

[Porschetech3]

Yes it makes since , your car has never had the PSE enabled , so the DME is not looking for resistance or to control it.

[d0lph1n]

Yes it makes since , your car has never had the PSE enabled , so the DME is not looking for resistance or to control it.



But the Sport button ON works accordingly:

- better throttle response

- faster gear shifting

- gear shifting at a higher rpm

- full pse solenoid control

- the steering wheel is more responsive

- more aggressive engine break (i think)

- open PSE valves

etc

Edited March 14, 2015 by d0lph1n

[Porschetech3]

Really? that's strange..should have to enable PSE in DME ,A/C control , and Gateway through PIWIS tester or Durametric software ..so it turns off and on with the button? . And does the modulation through the quiet zone ?Do you have a PIWIS or Durametric?

[d0lph1n]

Really? that's strange..should have to enable PSE in DME ,A/C control , and Gateway through PIWIS tester or Durametric software ..so it turns off and on with the button? . And does the modulation through the quiet zone ?Do you have a PIWIS or Durametric?



It turns on/off with the Sport button. No idea how it does the modulation. I don't have access to Piwis or Durametric. When I had access to Duramteric V3, the only error was CAN BUS display c112 in the gateway module..i think



Also, When I purchased the car, I paid for the an independent Porsche mechanic to inspect it. All the issues found (the Sport button wasn't working at all) including a DME issue were fixed by the dealer via a Porsche dealership. I was able to double check it by asking the Porsche dealer for the repair history.



It looks like at that time the dealer replaced & programmed the sport button control unit..for $1000.. Part number 997.618.516.01 was replaced

Edited March 14, 2015 by d0lph1n

[jhbrennan]



Yes it makes since , your car has never had the PSE enabled , so the DME is not looking for resistance or to control it.



But the PSE ON works accordingly:

- better throttle response

- faster gear shifting

- gear shifting at a higher rpm

- full pse solenoid control

- the steering wheel is more responsive

- more aggressive engine break (i think)

etc





In reading your various posts I think you might be confused (or I am) about your PSE.  What you described above for "PSE ON" is not PSE but "SPORT" mode.  You say you don't have PSE mufflers so I'm thinking you don't have PSE at all.  One external indicator would be to look at the tail pipes - do you have dual quads with the inner pipe with a smaller diameter than the outer pipe.

[d0lph1n]





Yes it makes since , your car has never had the PSE enabled , so the DME is not looking for resistance or to control it.



But the PSE ON works accordingly:

- better throttle response

- faster gear shifting

- gear shifting at a higher rpm

- full pse solenoid control

- the steering wheel is more responsive

- more aggressive engine break (i think)

etc





In reading your various posts I think you might be confused (or I am) about your PSE.  What you described above for "PSE ON" is not PSE but "SPORT" mode.  You say you don't have PSE mufflers so I'm thinking you don't have PSE at all.  One external indicator would be to look at the tail pipes - do you have dual quads with the inner pipe with a smaller diameter than the outer pipe.



Yes you are right...I made a huge error. I have a Sport button, not a PSE button. What I'm trying to do applies to either PSE or Sport button.

Edited March 14, 2015 by d0lph1n

[d0lph1n]

Really? that's strange..should have to enable PSE in DME ,A/C control , and Gateway through PIWIS tester or Durametric software ..so it turns off and on with the button? . And does the modulation through the quiet zone ?Do you have a PIWIS or Durametric?

I appologize for my previous chaos. I have a SPORT button, part of the Sport Chrono...not a PSE button. I'm really sorry. I've been reading lately the PSE install pdf which has the instructions for both..Sport Chrono or PSE only. I've updated my previous posts.



Anyway, do you have the DME pinout or schematics?

Edited March 14, 2015 by d0lph1n

[d0lph1n]

Can anybody please confirm, is the Sport button's ON/OFF LED connected directly to DME or not?

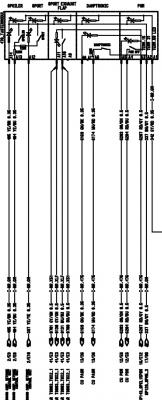

On my copy of  911 2005 Sheet 4 "CU CLuster / Combined Steering Column Modul":

I'm guessing, the Sport Button's LED (A12) - On Board Comp, Network Control Unit 2/E10 - 397 Ye/Ye 0.35 - NR. GM



Also, what's the easiest way to access this wire or what's the exact location of the CU On Board Comp. Network?

Edited March 17, 2015 by d0lph1n

[Kyle]

On 2015. 3. 13. at 1:10 PM, AP 997S said:

If it's a factory installed PSE then I believe the PSE switch is connected to the DME.  I believe I have a PDF of the 997 install technical bulletin which shows the direct connection to the DME. If you want it send me your email address via a PM and I'll try to find it and send it to you.

HELLo,



can you send me the 997.2 PSE install guide file to me?

cmkoo21@gmail.com

thanks

[d0lph1n]

I used to have just the wiring diagram for PSE of 997.1. Since you need it for a 997.2 I advise you to keep looking for it.

[AP 997S]

I’m not the guy looking for this info.
