I am in the middle of a 3.4 996 motor swap into my 98 Boxster and I have to add a wire to the #59 slot in the 88 pin DME plug.

Does anyone know where I can find the female spade that goes into the DME plug?  and also where I can get the insertion tool?

[Richard Hamilton]

I think I would try the VW repair wire 000.979.009E or 000.979.010E. I used one of these to connect to the Tiptronic plug when I did the (non-eGas) cruise retrofit on my 1998 996, and I think it mightt use the same terminals on the DME. Didn't need an insertion tool. It just clicked in. Sorry I can't tell you which VW wire for sure, but it was about 9 yers ago.



Edit:  Looking at the connector assignment diagrams, I think I might be leading you on a wild goose chase, as the connectors look quite different.  Sorry.

Edited September 4, 2014 by Richard Hamilton

[Reebuck1]





This shows the DME 81 pin connector.   Notice that the connector do not match the VW connector you spoke of.   I have used the VW connectors

on my cruze control install but it is not the same as the DME spades.      Still looking anyone have any ideas???

[Ahsai]

Could you remove one of the pins to show us how it looks? I think they are one of these http://parts.bmwofsouthatlanta.com/showAssembly.aspx?ukey_assembly=251077&ukey_make=972

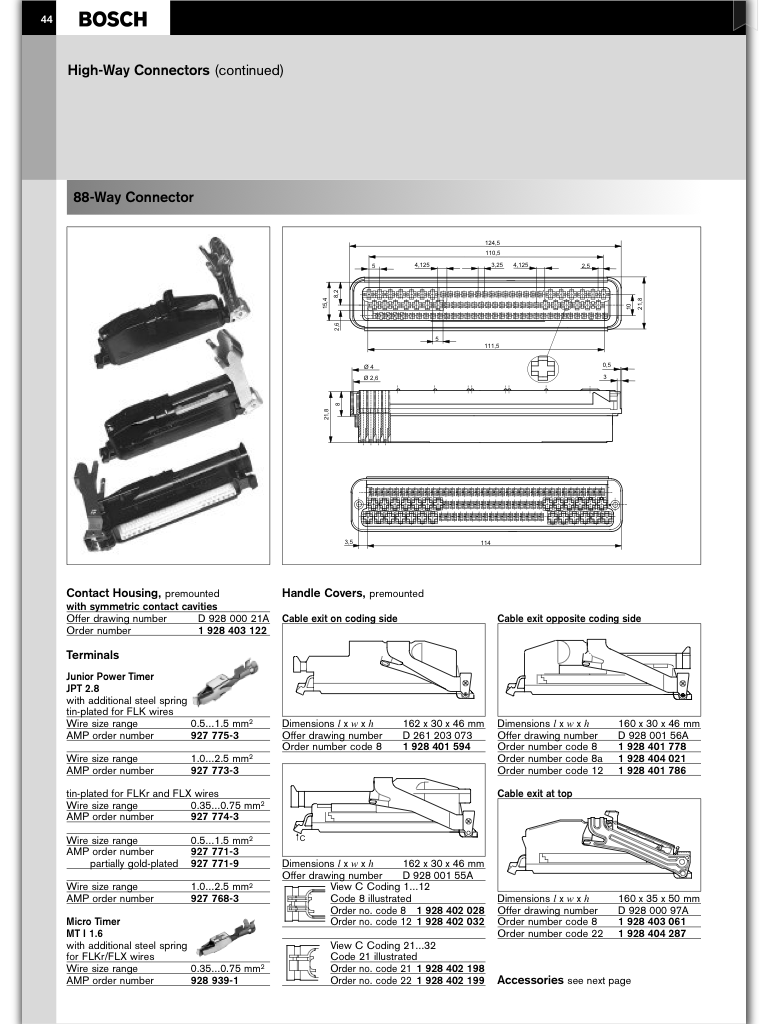

I found the Bosch part number but only available in UK http://www.cannell.co.uk/Bosch_Technical/efi_techserviceparts.pdf

Page 7 bottom shows the plug insert and page 8 shows the female pins.

[Ahsai]

Ok, I've found it. Should be available from onlinecomponents.com if you key in the part numbers.











[Reebuck1]

Thanks Ahsai great detective work !!   It is much appreciated !!   Bob

[Reebuck1]

Rich ,  I found it thanks to Ashai!



The Bosch numbers on the white internal section for the 88 pin DME plug are 1 928 401 587 and 1 928 403 122.  That part has two numbers on it.

This plug has two different size spade connectors.  The small spade connector is Bosch number 1 284 477 219(JPT AMP substitute 927 774-3).  The large connector is part number 1 284 477 121(JPT AMP sub. 927 775-3).   Thank you for your help, it was very much appreciated.

I was unable to get a pin out without destroying it.

Thanks,    Bob

Edited September 5, 2014 by Reebuck1

[Ahsai]

Anytime.

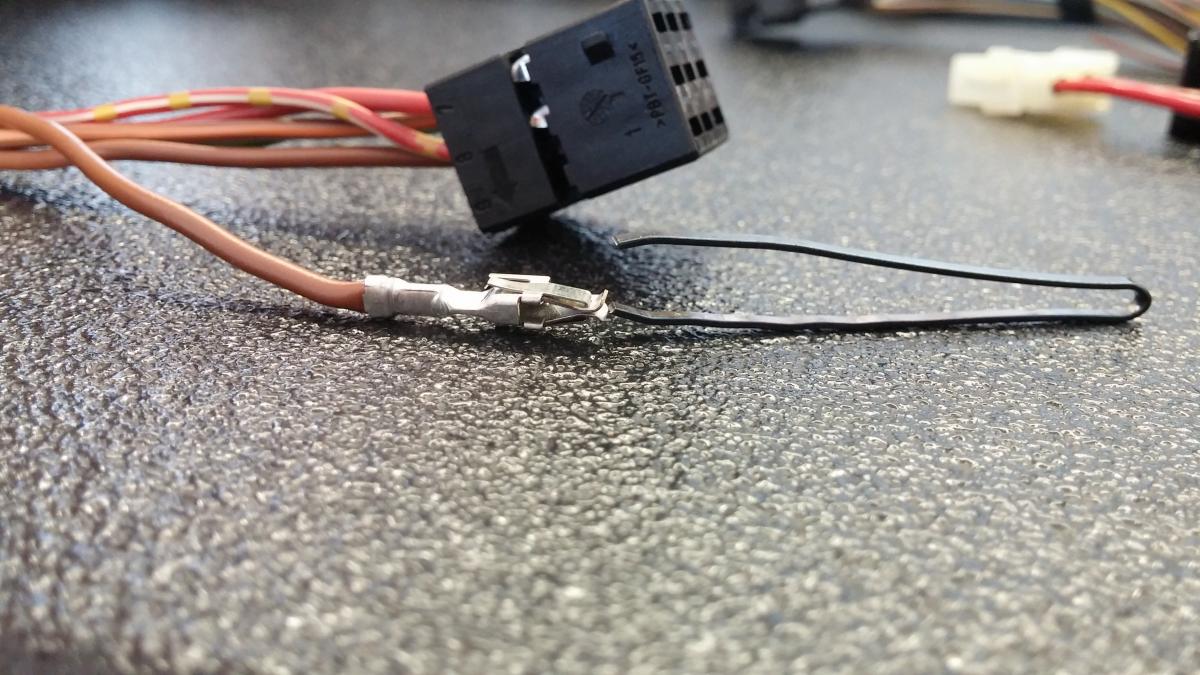

Maybe too late now but you can make your own pin release tool using a steel hair clip. Here's one I made for this type of pin. The angled tips are critical.









[Reebuck1]

• Great thanks !!!!
