Rear Camera installation for 2006 Cayenne

[Nimesh Udani]

Hello All,



Can anyone out there walk me through the steps on installing a rear view camera for my 2006 Cayenne?  I purchased an aftermarket camera unit from Ebay that fits into the licence plate light.



I am in southern California and I am willing to make it worthwhile to anyone who can help me out.



Thanks



[kbrandsma]

What are you trying to install it to? Do you have an aftermarket head unit?

[Nimesh Udani]

Yes I am going to upgrade to the new Dynavin N6.  Tired of the old outdated PCM 2.1, which has the capability of back up camera but the local stealer is not willing to code the AV button for free.  They want $189 to just enable the rear view camera in the PCM 2.1 system.

[kbrandsma]

Do you need assistance with wiring setup and connections or the best way to route the wiring for your Cayenne?

[kbrandsma]

Wiring setup for most back-up cameras:

* Run a lead from the Dynavin Head Unit (HU) to the rear of the vehicle. Usually a yellow RCA Connector (may also have a white RCA Connector which is audio that is not needed).

* Run a lead off the positive reverse light in the rear of the vehicle to the camera (usually red wire on the camera.)

* Connect the lead from the HU the lead to the camera (usually yellow RCA to yellow RCA.)

* Use the backup light ground for the camera (This is usually a black wire to camera.)

IMPORTANT!!!

Don't reverse the red and black wires as you will cause serious damage to your backup camera that will not be covered by any warranty.

When you put the vehicle in reverse, the HU will briefly show the PDC screen, then automatically switches to the camera feed. When you take it out of reverse the HU will resume ordinary operation. You can also manually turn on the camera moving forward by turning it on with the HU. I use the camera this way most of the time as it removes all of the blind spots that the rearview mirror misses.

Edited August 1, 2014 by kbrandsma

[Nimesh Udani]

Thank you. Too bad you're in in s. Cali! :-)

[Nimesh Udani]

Okay so the connection is not going to be an issue but how should I route the wire from the license plate into the trunk? Do I need to remove the inside back panel?

[kbrandsma]

Yes, your going to need to remove the rear door inside back panel and route your wire from license through the top and then up to the front.

Here is a video that should help. It's a different model camera to a different HU but does shows one way to route your wire. The model year is not a 2006 but the process should be similar.

Edited August 3, 2014 by kbrandsma

[Nimesh Udani]

Ok that's what I had thought as well.  I did see the video in it is quite informative.   One other question.   I know the GPS antenna is up in the rear spoiler but where does it connect up front near the head unit?  Jeff from Dynavin stated that it is underneath or near the glove compartment.  Can you please confirm?



By the way, have you upgraded your PCM as well?



Thanks again for your help.

[kbrandsma]

It is in the roof spoiler IIRC. I updated my Boxster to a Pioneer double din set-up.

[Nimesh Udani]

Yes I am aware that the GPS antenna is in the rear spoiler but where does it connect to the PCM unit? I would lime to use the same GPS antenna to connect to the Dynavin unit. Thanks

[kbrandsma]

Your PCM 2.1 has three antenna inputs, the black one is for the antenna, tan is diversity, and the green is the video-in.

You'll need a female Falkra adaptor to RCA male for the Dynavin unit.



Should be port I



•

More info PRESS HERE

Edited August 4, 2014 by kbrandsma

[Nimesh Udani]

SO to confirm. Just unplug the black GPS antenna from the i PCM 2.1 and connect the same to Dynavin as the new Dynavin N6 has the fakra connection?  Thank you again for being patient.

[kbrandsma]

Yes, what ever color wire is connected to Port I

[kbrandsma]

Not a problem, glad I could help. Let us know how it turns out!

Edited August 5, 2014 by kbrandsma

[Nimesh Udani]

Still waiting for the Dynavin unit. Let me ask you about your mic placement. Where is a good place to put it. Previously with my mObridge unit I had it on the A pillar. People always complained that they could not hear me well so I am seeking a new spot. In my BMW GT the mic is embedded in the ceiling and people can't tell that I am using a Bluetooth connection. Of course it's a 2013 model.

[kbrandsma]

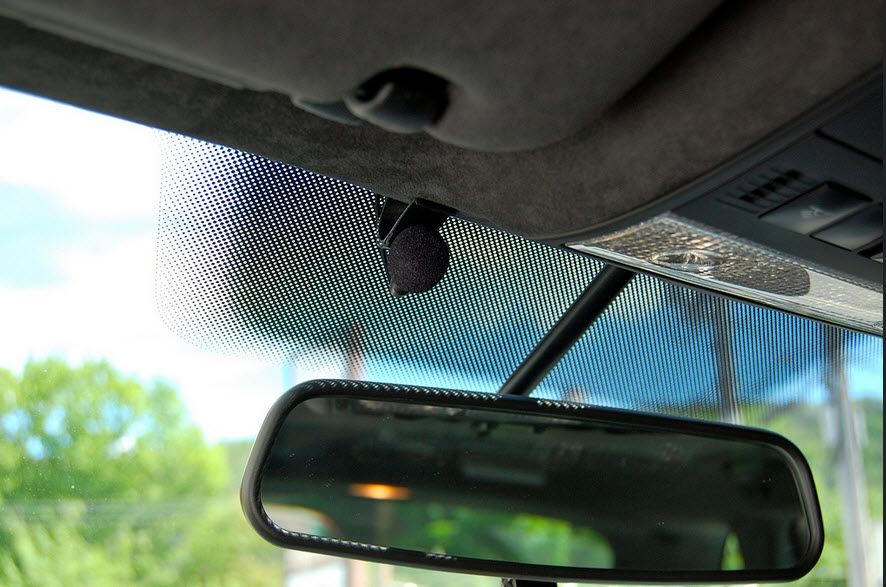

Here's been a good spot. I like to keep them to the right side of the driver.





Edited August 8, 2014 by kbrandsma

[Nimesh Udani]

Did you pry the headliner out a little to get the wire in? I am always hestitant on messing with the headliner. Thx

[kbrandsma]

Best to run it from HU under dash on passenger's side over glove box and up the A pillar. If you look at the side of your dash with the front passenger door open there will be a piece that pops off and fish wire up the A pillar.  There will be a torx screw at the top of the A pillar, remove the torx screw and pull pillar away but not out. and continue to route the mic wire to the front of the headliner and to the center console.

[Nimesh Udani]

awesome...I installed the mic just like yours and the other party hear me fine.  Still waiting for the Dynavin unit.

Edited August 9, 2014 by Nimesh Udani

[Nimesh Udani]

Yes, what ever color wire is connected to Port I

By the way, when I pulled the the PCM unit out last night I noticed that nothing is plugged into Port I.  Is my GPS antenna plugged under the passenger seat DVD drive?
