facelift 99-01 to 02-05 bi-xenon headlights. How do you connect the se

J_STATUS
 Share

Recommended Posts

J_STATUS Member

J_STATUS

Posted
Posted

Anyone got wire diagram for 02-05 Bi-xenon headlamps (to connect the auto-leveling)?

To connect to 99-01 headlights harness. I need to connect the self auto-leveling.

The picture shown below is my harness plug for my litronic xenon self leveling for my 99'.... I need to plug it to my 02' bixenon.

Purple, blue, green pink wire is from my 99. The 02' pin connector for the self leveling is pin 7,8,9,10.

I just don't know which color goes to which pin number.

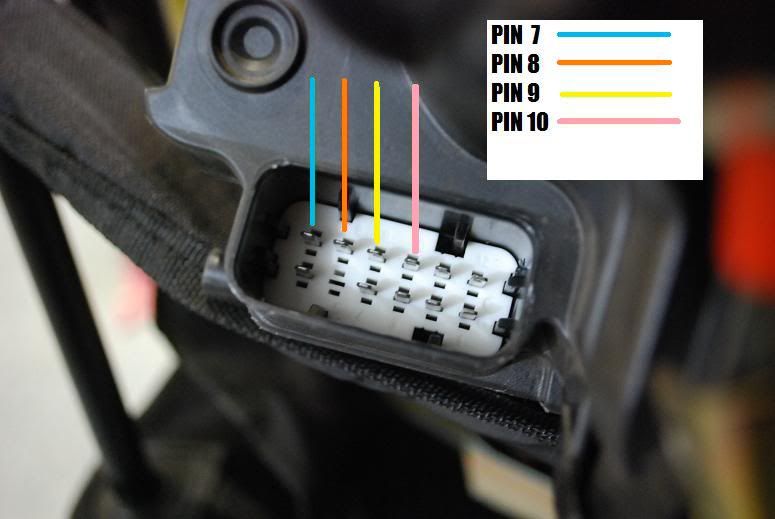

The second picture is the 02-05 bi xenon headlamps (harness plug)

the 4 pins are open. I just can't figure it out. Help guys! Thanks!


J_STATUS Member

J_STATUS

Posted
  • Author
Posted

Not quite sure what I'm looking at. I know it's a wire diagram but I can not find away to connect. Please give more info/help. Thanks!

  • 2 months later...
  • 2 years later...
  • Admin
Loren Member

Loren

Posted
  • Admin
Posted

Sorry but if you do not know how to read a wiring diagram then it is likely best to find someone that does to do this for you.

You would need to match the connections point for point.



And of course you do know you need the MY02 or newer fenders and headlight mounts - these are not even close to "plug 'n play".
