Rubber on V lever

[gunman168]

I recently purchased rubber bushings for my V levers. It is the rubber bushing in between the V lever and the push rod (which holds the plastic ball joint at the other end). My problem now is what exactly is the correct placement for these black rubber bushings on my V levers since my old rubbers are already totally torn off.

Please provide me with pics and some instructions on the correct fitting or replacement position for these.

Thank you guys for all the help.

John

Edited November 17, 2011 by gunman168

[1schoir]

I recently purchased rubber bushings for my V levers. It is the rubber bushing in between the V lever and the push rod (which holds the plastic ball joint at the other end). My problem now is what exactly is the correct placement for these black rubber bushings on my V levers since my old rubbers are already totally torn off.

Please provide me with pics and some instructions on the correct fitting or replacement position for these.

Thank you guys for all the help.

John

John:

Here you go (click on the photos to enlarge):

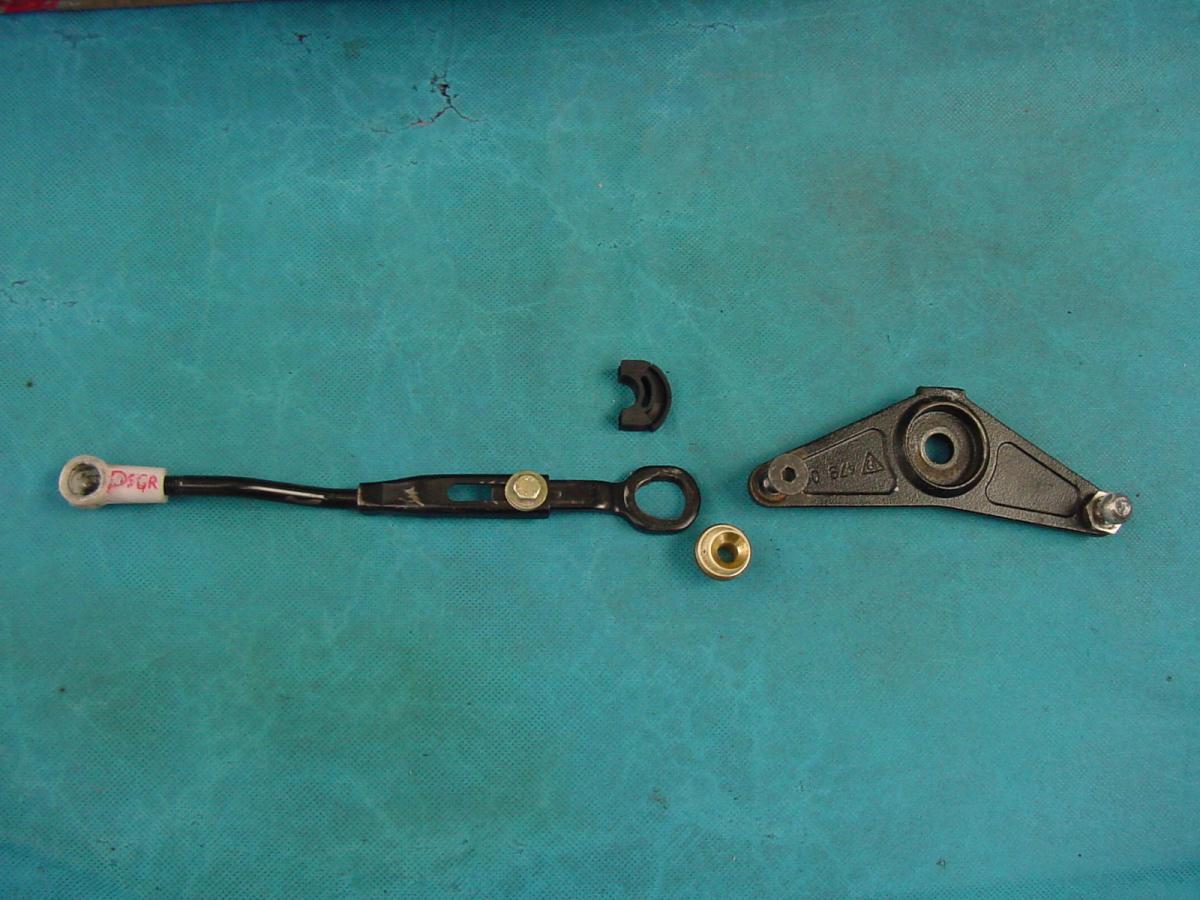

Here you have, from left to right, the pushrod (with plastic ball cup), the rubber bush (oriented in the correct position before insertion into the tail of the pushrod), the guide sleeve, and the Allen head countersunk screw temporarily located in the forward arm of the V-lever.

Here is what they look like after assembly.

Regards, Maurice.

Edited November 17, 2011 by 1schoir

[gunman168]

I will try it this weekend. Will let you know results.

Thank you my friend!
