2000 Boxster S Fuse Panel Plan

[jpdornberger]

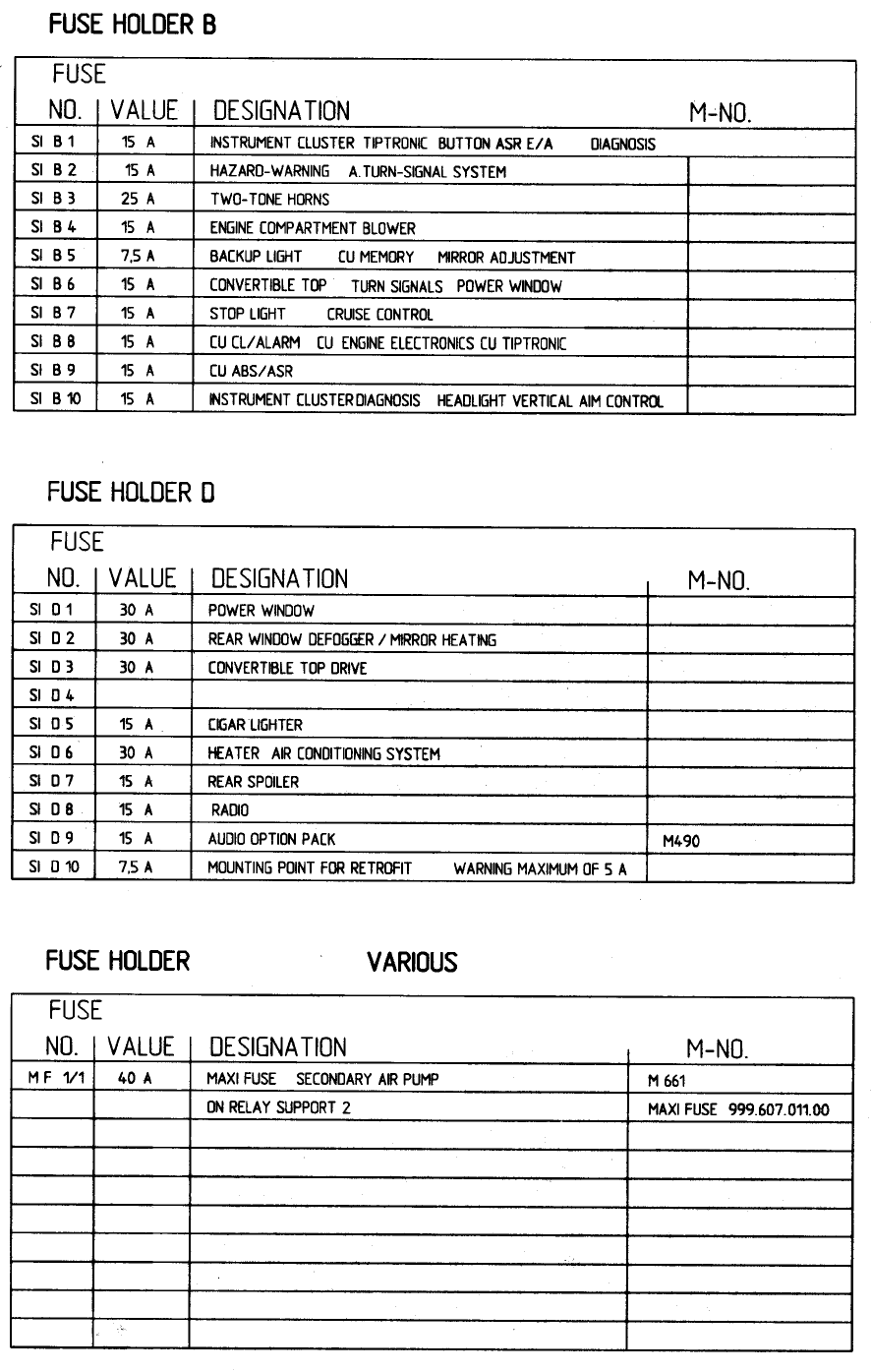

The fuse box plan is not located on the back of the panel door as indicated by the Owner's Manual. Anybody know where I can see one? pdf?

Thanks,

Jim Dornberger

[Loren]

[jpdornberger]

Thanks Loren. You're a life saver. Jim Dornberger

[J400]

Hey Loren , would this diagram be the same as a boxter 2000 base . I too don’t have the diagram and having trouble with my radio , I’ve taken the face off for wire check and everything’s fine I’m starting to think it’s a fuse but no diagram ..

Edited May 18, 2019 by J400

[Loren]

1 hour ago, J400 said:

Hey Loren , would this diagram be the same as a boxter 2000 base . I too don’t have the diagram and having trouble with my radio , I’ve taken the face off for wire check and everything’s fine I’m starting to think it’s a fuse but no diagram ..



Yes, and MY200 Boxster.



The radio also may have a separate in-line fuse. As well, the amp if you have one.
