Tool Kit / In Hatch Area

[madburg]

Hi Loren,

I would like to purchase the missing piece/s to the tool kit in the rear hatch area, seems I am missing at least two. Also do you have one of those diagrams of what each one is for, dont laugh, outside of the jack I dont know what the rest are or are for. pictures below.

[Loren]

One is the towing lug 955.721.151.00 -- US MSRP $14.06 and maybe the center cap extractor 955.721.153.00 -- US MSRP $0.57

[spyrwebs]

lol, your post made me run out and look since I do not remember seeing tools in those areas. I do not have tools in those areas too, so I doubt you are missing anything except for the slime tire repair kit. I cant find anything in the parts diagram for the tool kit area.

Parts usage from left to right in first pic:

1: that mobile1 bag is in the place the tire repair kit

2: rear tire chuck or tire stopper thingie

3: that number 6 thing, i have no idea, maybe an ear wax pick or a tool for some pick for the shifter or door lock

4: tow screw for front rear bumper

5: headlight removal tool

6: lug nut wrench

7: rim rest to install wheel

8: wrench for wrenching

2nd pic:

1: jack for jacking

[spyrwebs]

Oh that number 6 shape tool thing is the hub cap extractor, thanx Loren

Edited June 10, 2010 by spyrwebs

[madburg]

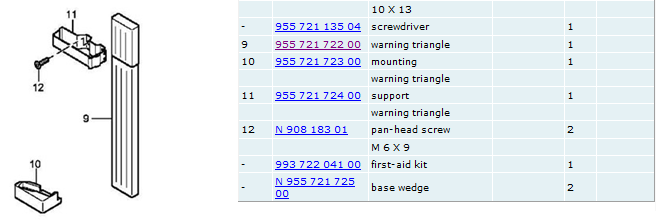

So it seems I do have just about everything, but the screw driver 955 721 135 04 where would that go? and unless I am looking in the wrong area no Warning Triangle parts at all? Can anyone share a picture of where it should be?

I have also attached a picture of someone elses I found on the web, it seems to have a small yellow something in it, please see red arrow.

[spyrwebs]

The triangle should be located in the trunk right panel compartment where the CD changer is along with the first aid kit. The screwdriver is in the end of that lug wrench, it just pulls out. Phillips and flips to a slotted screwdriver also.

[spyrwebs]

Edited July 7, 2010 by spyrwebs

[madburg]

Thank you thak you :), now I can go look for them :), dont recall seeing anything but the suspension module and cd changer back there (right side panel).

[madburg]

OK, so it seems I have everything but the first aid kit and the Warning triangle setup. Can anyone share a picture of the Warning Triangle and Firstaid kit placement?

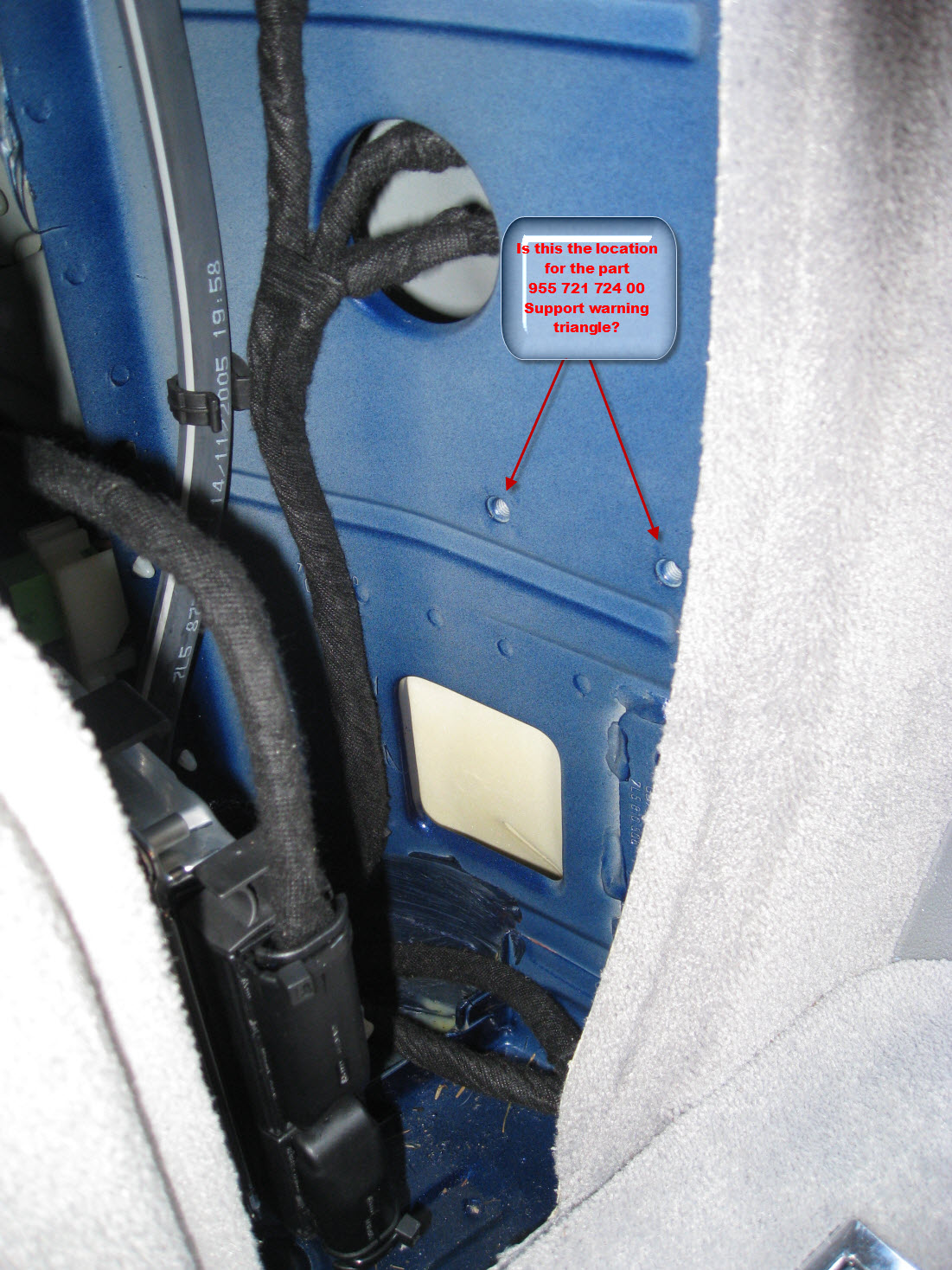

I snapped a picture of where I believe the part 955 721 724 00 (support warning triangle) gets mounted with (2) 908 183 01 Pan-head screws? is this correct.

Also for part number 955 721 723 00 (mounting warning triangle) for the bottom of the triangle case, is that just loose or it gets mounted some how? as it does not meantion a screw or anything?

Is the first aid kit worth it? if I recall it was a bit pricey. I am placing an order for a few other items from suncoast today, so would like to wrap this up :)

Very much appreciated!

[Loren]

US cars did not get the first aid kits and in most Porsche models did not get the warning triangle.

Check other Cayennes...

[madburg]

Thanks, I placed the order, will see what happens, all parts for the triangle were available, so I will see how it goes when it comes in. The first aid kit was not, replaced with an Audi first aid kit, oh well :)

[spyrwebs]

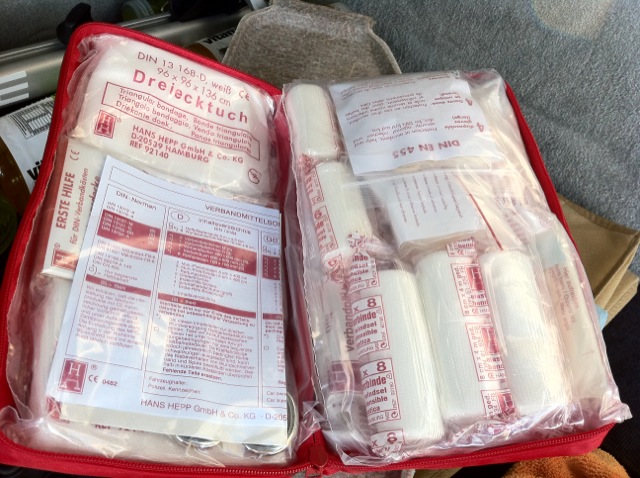

[Yea thats the location for the triangle and first aide kit. the holding bracket mounts in those two holes with a metal/velcro bracket. I put the Mobile1 where the first aide is suppose to be sitting at. The bottom support is just a foam piece that sits in place. I dont think the first aide kit is worth it, its just a bunch of gauze, tape, gloves, scissors, arm sprints. I didnt see anything I would use, no bandages or for small wound things.

Oh Yea, we have the same color Cayenne, Lapis Blue Metallic!

Edited September 24, 2010 by spyrwebs
