Make your own CAI for less than a $

[Doohan]

Want to try a cold air intake like the schnell type? Do you already know that a modified air intake have as result only a great sound and almost nothing in hp gain? So... let's do it with less than a $ spent...

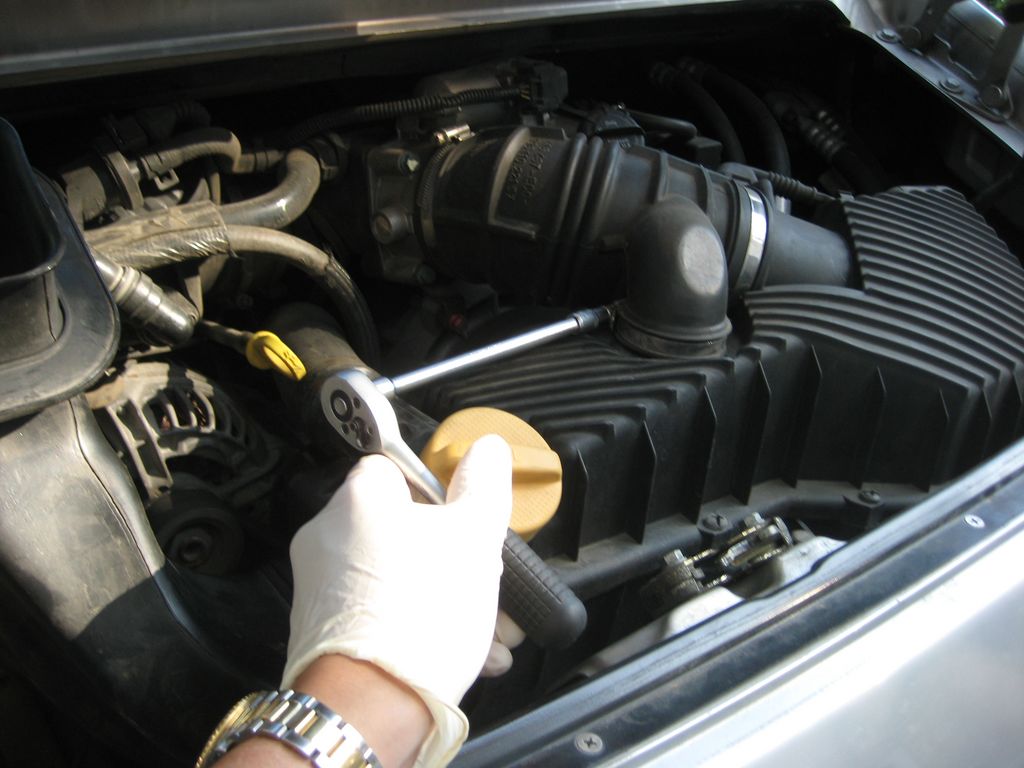

Here we have the factory box filter

Loose the wraps

Take a 50 cent plastic tank

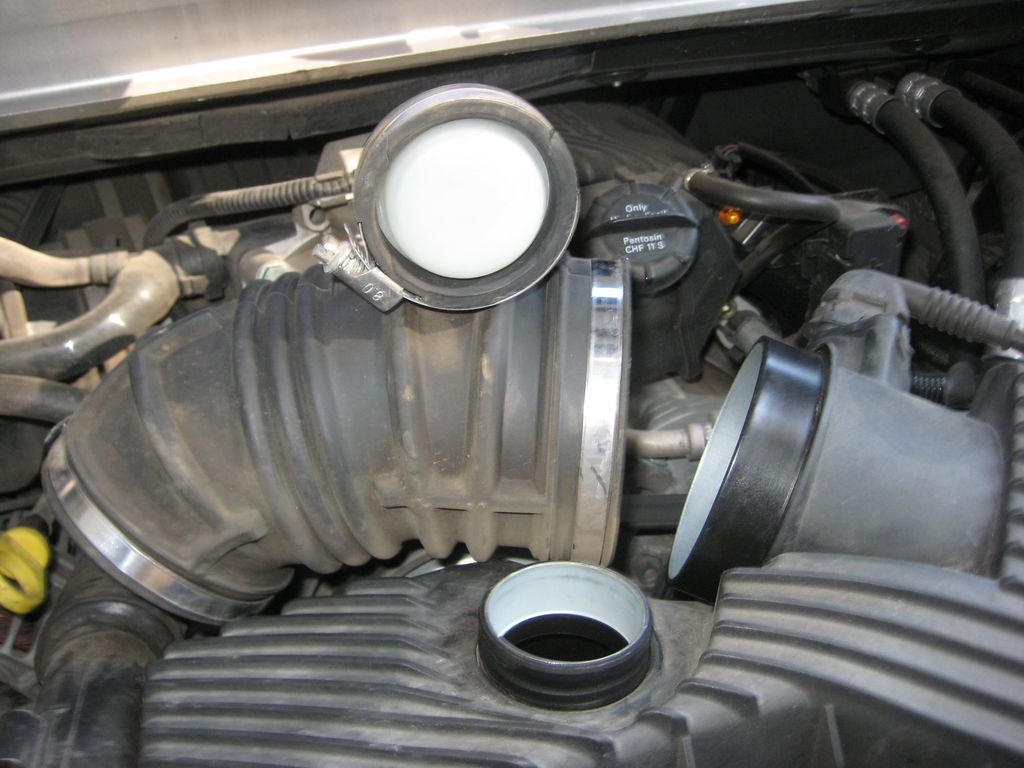

put the middle plastic cap inside the secondary air inlet of the OEM air intake

Check if everything is all right and remount the intake with the original wraps

Let the MAF sensor read the new air volume and you are done!

[phillipj]

Nice job.. Fabspeed and Schnell hate you.... :angry:

:beer:

[wross996TT]

sounds a lot like the orange cap mod...like this...for free.

Edited October 13, 2009 by wross996TT

[Doohan]

Exactly the same!

[phillipj]

Exactly the same!

How did you find a plug that fit? Trial & error?

[Doohan]

Exactly the same!

How did you find a plug that fit? Trial & error?

Just tried with a couple of tanks...

[phillipj]

Excellent.. Thanks..

[Zavage]

Excuse my ignorance, but exactly what does this mod do?

What does it do to the airflow, and how does it alter the engine sound?

Is it a mod for both turbo and non turbo models?

I'm fairly new to Porsche engines, so bare with me if the questions are kind of silly... ;)

[phillipj]

Sound only really. That opening in the airbox acts like a muffler. All the cap does is disable the muffler. The result is a better sound. More throaty but no kind of performance gains. B)

[wross996TT]

Is it a mod for both turbo and non turbo models?

I'm fairly new to Porsche engines, so bare with me if the questions are kind of silly... ;)

No this is not for turbos....

[Zavage]

Sound only really. That opening in the airbox acts like a muffler. All the cap does is disable the muffler. The result is a better sound. More throaty but no kind of performance gains. B)

Thanks... Just the explanation I needed :) I like throaty sound! :D

[phillipj]

There is a video from Fabspeeds website with a good explanation video of how their intake silicon hose bypasses the secondary opening in the airbox and why it makes it sound better. The video is in the 997 section at the bottom of the page. It's basically the same as the 996.

By putting the plastic cap in the additional hole you are basically doing what their product does.

http://fabspeed.com/997_997S_997GT3.html

Edited October 21, 2009 by phillipj

[function12]

Anyone find a similar plug in the US?

[wross996TT]

Anyone find a similar plug in the US?

look at the link I posted...already

[wross996TT]

To the OP...could you please measure the cap ID, OD & depth and post for others. TIA.

[cakasa]

DOOHAN .......... Where did you find the small tank with the inner cap?

[jimmyw71]

This is a very cool mod. Thanks for the tips!

[Doohan]

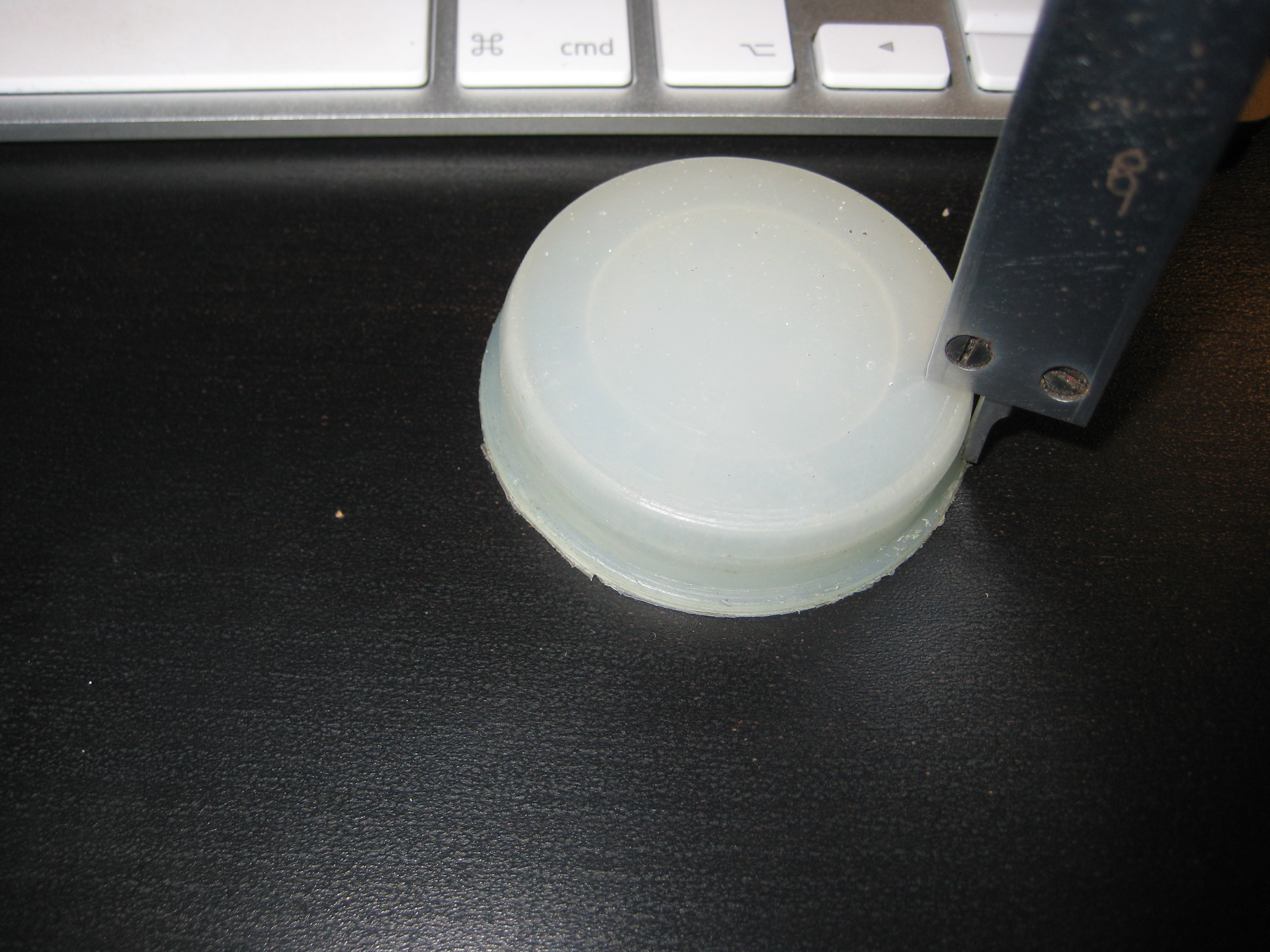

Large 46 mm

height 11mm

Try @ Home Depot
