Becker CDR-23 pinout or connector wiring diagram

[yellowlemon]

Hello!

I want to replace the CDR-23 radio in my 2004 Boxster. I have no Amp or CD changer that uses MOST bus.

With regards to the CAN bus however, I am worried about the following:

1) Is there a connection for Ignition+ behind the radio? I read since the CDR23 gets the Ignition signal as DATA over the CAN bus, this wire may not be present in the ISO plug. I also read there may be an alternate source for Ign+ from the Climate Control unit...... but which wire???

2) If I turn the radio on without the key in the car, the it will turn off automatically when I press the LOCK button on the key remote, which is really cool. Will this stay if I replace the radio with aftermarket? (My question is: does the key's LOCK button cut off the Ignition+ power in general, or is it actually a special CAN message that the CDR23 is responsing to that says I've pressed the button on the key?)

3) Is there a wire for Inside Illumination on-off ANALOG signal? Or does this go over CAN bus as well for the CDR23? Is there a nearby source I could tap this signal?

A picture of the pinout or wiring would be really helpful, and any advice is much appreciated, thanks!

[yellowlemon]

Had a look on Bob's Ultima Site: http://www.ultima-gtr.org.uk/becker.php

Apparently I can get Ign+ from BLUE-BLACK at the Climate Control Unit's LARGER connector.

Also:

Plug A of Original CDR-23 in Boxster or 996.

---------

Pin 1 - ?

Pin 2 - ?

Pin 3 - ?

Pin 4 - Constant (+)

Pin 5 - CAN bus or other control (must be cut for other radio, or Aircon stays off)

Pin 6 - ?

Pin 7 - NO Ign (+) present, see above

Pin 8 - Ground (-)

Plug C

----------

C1 plug contains the CAN high and low signal wires, and must be disconnected for other radios or the aircon compressor cooks itself!

Could someone inform me what exactly is on Pins 1,2,3,5&6? And where in C1 are "CAN high" and "CAN low"?

Thanks!

[Loren]

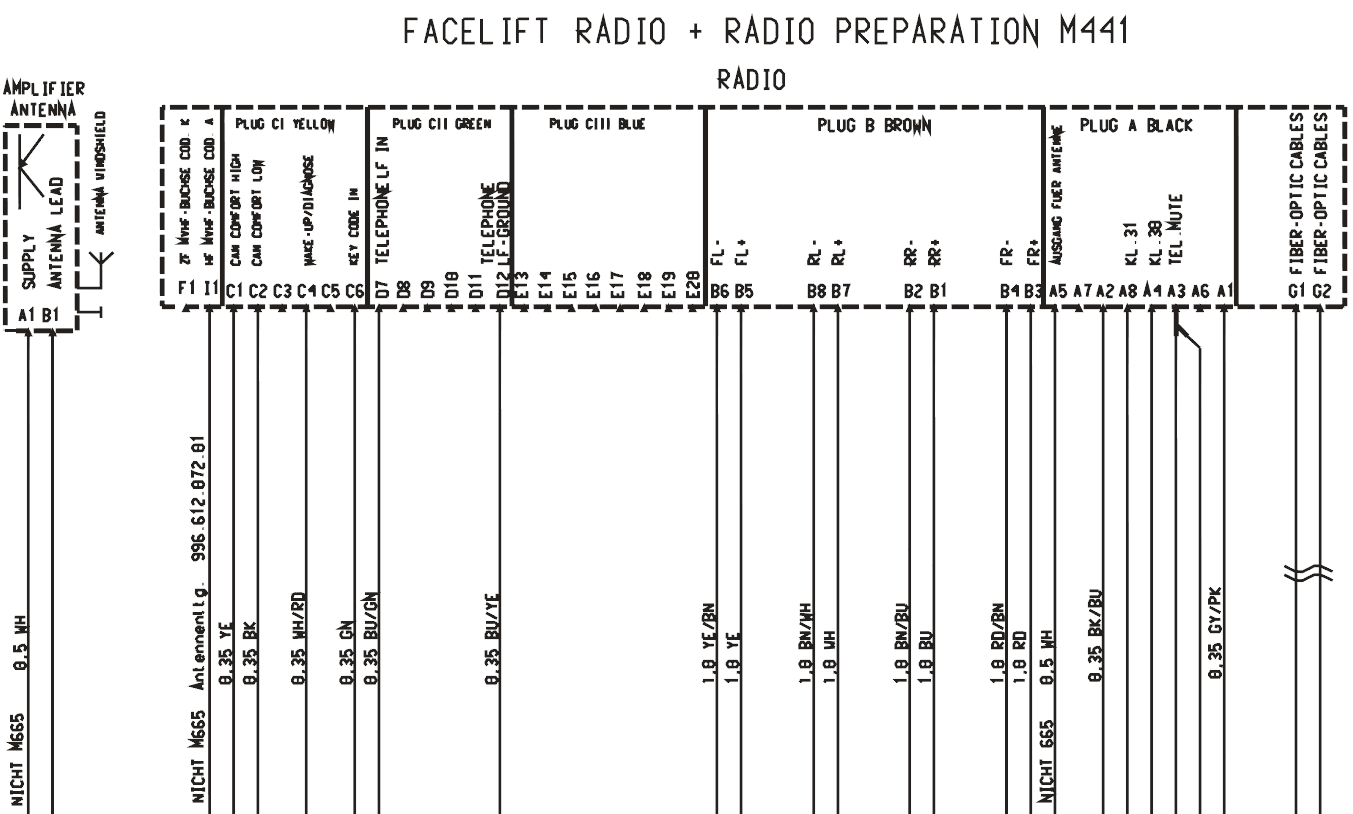

Good luck on this...

[yellowlemon]

Good luck on this...

Thank you very much for that!

I also found this useful resource on the CDR-24 pinout which matches your wiring diagram for the CDR-23 (in the important parts :) It seems these two radios are very similar.

From http://www.planetporsche.net/cayman-boxste...tooth-myth.html

CDR_24_Pinout.pdf

Edited March 28, 2009 by yellowlemon

[yellowlemon]

Quick question about Loren's diagram above: Can anyone tell me what these wires are? They are connected at the back on my 2004 Box CDR-23, but what is connected at the other end?

Pin A1 - Grey-Pink Wire - ???

Pin A2 - Black-Blue Wire - ???

Thankyou!

[Loren]

Quick question about Loren's diagram above: Can anyone tell me what these wires are? They are connected at the back on my 2004 Box CDR-23, but what is connected at the other end?

Pin A1 - Grey-Pink Wire - ???

Pin A2 - Black-Blue Wire - ???

Thankyou!

Grey/Pink = Speedometer wire (usually used for PCM, PSE, and radio volume control at speed)

Black/Blue = Backup signal (not likely used on a Boxster)

[yellowlemon]

A1 Grey/Pink = Speedometer wire (usually used for PCM, PSE, and radio volume control at speed)

A2 Black/Blue = Backup signal (not likely used on a Boxster)

Thanks heaps Loren! Good to know I have those two signals ready to go should I install a NAV unit in the future.... very near future :jump:

[Tdurden032]

Thanks for sharing - great info!!

[70Sixter]

I don't think the 2004 Box CDR-23 has speed controlled volume like earlier cars. It has another name Audio something that is supposed to adjust sound to ambient noise. Can't tell a difference on mine.

[amagalla]

OK. I'm In the process of changing out my CDR-23. I want to make sure that I have the wires on the "A" plug identified correctly. Can someone confirm this?



Pin 1 - Speed Signal
Pin 2 - Reverse Signal
Pin 3 - Phone Mute
Pin 4 - Constant (+)
Pin 5 - Signal for amplified antenna

Pin 6 - Not connected
Pin 7 - Not connected
Pin 8 - Ground (-)







Thanks.



Tony
