Rear tail light wire harness map

Mikli
 Share

Recommended Posts

Mikli Member

Mikli

Posted
Posted

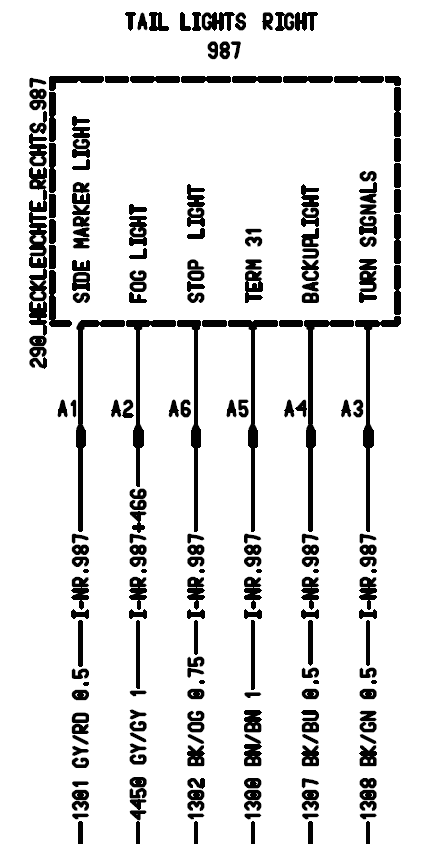

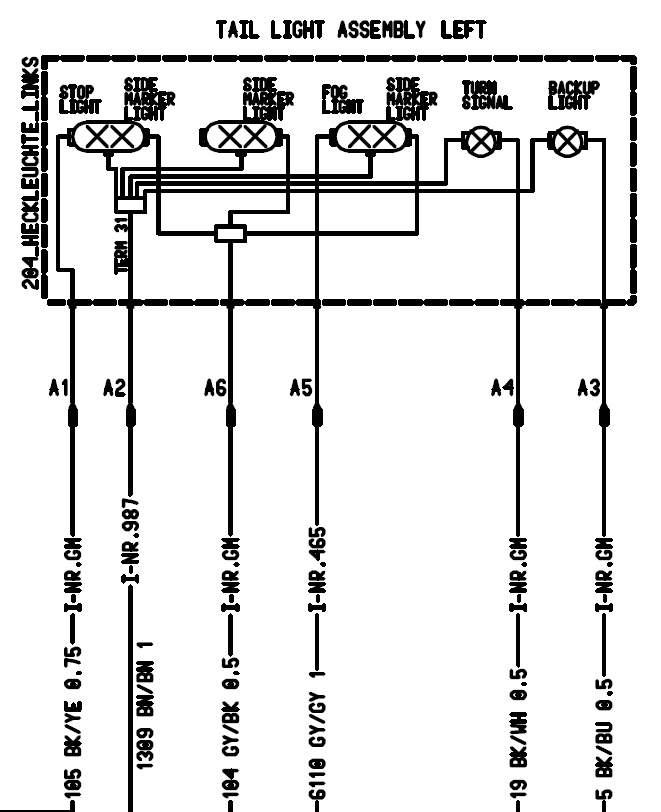

Can anyone show me a map of the rear tail light wire harness? I have a 2008 Boxster S.

I'm looking for the left and right inner brake light (bulb 1157) wire locations.

Thanks!

  • Admin
Loren Member

Loren

Posted
  • Admin
Posted
Can anyone show me a map of the rear tail light wire harness? I have a 2008 Boxster S.

I'm looking for the left and right inner brake light (bulb 1157) wire locations.

Thanks!


  • 15 years later...
Roberto Ricardo Member

Roberto Ricardo

Posted
Posted

Hi,



I am looking at this rear harness map as I am having some issues with my tail turning signals (2007 Cayman Base MT).

Long story short, I had water ingress in the car which fried the Rear Control Module.  I replaced the RCM, which fixed my tail lights, stop light, backup light, and spoiler power issue, but now the turn signals are not working properly. The funny thing is the turn signals and Hazard flashers were the only thing working when it had fried the original RCM module. Now I have the error message about the turning signals on the dash, side marker blink appropriately but tail turn signals do not. Hazards do not light in the back and have the fast clicking sound of the turn signals in the dash.

The car has LED taillights and I wonder if, with the new RCM, I need a new flasher light relay fuse (I am not sure if there is a flasher light relay fuse on the Cayman as I had seen in other videos for 986 Boxster). The

Any help is greatly appreciated!
