Just some update:
Current fault code showing on my Durametric
10
2025
881202
c11005
a000
c12025
1000c
a086

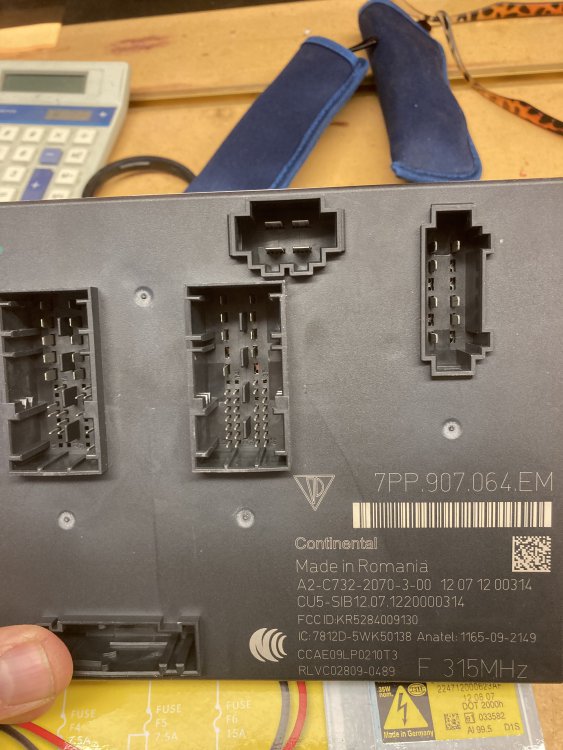

It appears to me to be some corruption of data in my front BCM (Body Control Module).
Attached could be some support for this.
Porsche BCM backups, programming & problems
Cloud Mega
Including here all backed up front and rear BCM files with Dflash and Pflash from this scrap Cayenne, spare Macan front BCM
7PP907064GD - front BCM
----
7PP907279AS - rear BCM
7PP907064KK - front BCM
---
7PP907064KN - front BCM
7PP907064GA - front BCM
Front BCM 5M48H - 7PP907064GD Cayenne 2014.rar
Rear BCM 2M25J - 7PP907279AS Cayenne 2014.rar
BCM 1N35H - 7PP907064KK.rar
BCM 1N35H - 7PP907064KN.rar
BCM 5M48H - 7PP907064GD.rar
Front BCM 5M48H - 7PP907064GA.rar
Cayenne, Macan, Panamera and others.
Backups of MCU memories - D-Flash and P-Flash,
what programmers to use and from which to stay away.
IMMO/Key/CS related information and how to adapt used BCM and ECU modules to the car.
There are a lot of posts around the forums where people are looking for help where from trying to read/unlock/write BCM is dead after.
MCU's used in these BCM's is very sensitive (Motorola MC9S12 - 1L15Y, 1N35H, 2M25J, 5M48H)
and some programmers when trying to ID/Read/Unlock/Write these MCU's tend to corrupt or erase the memories in these MCU's.
From what i have experienced it is the D-flash and Partition configuration that tends crash.
I have from scrap Cayenne 2014 4.2 diesel - front and rear BCM modules and both ECU's EDC17CP44
and I also bought used BCM from Macan 2017 to play with.
BCM reading/unlocking:
Cayenne Front BCM with 5M48H MCU, rear BCM with 2N25J MCU and Macan front BCM with 1N35H MCU.
All 3 BCM modules i successfully read with VVDI Prog. I removed the diode, 0 ohm resistor,
made the cut to crystal connection and i prefer to desolder the crystal too and 12V power supply to programmer connected.
It had no problem reading the backup of Dflash and Pflash. It did the UNLOCK function without problem.
From there is started to experiment what could be the reason for corrupting these memories.
Using VVDI Prog i used LOCK function to lock back these MCU's where locked byte is 7D (FE for unlocked).
I have Autel IM608 with XP400Pro programmer and I tried to use that for reading these BCM's. 2M25J was OK. 5M48H was OK. 1N35H - DEAD.
Autel could not do the backup of the 1N35H, it was unsuccessful unlocking the MCU. After that VVDI Prog could not unlock it too because something in that MCU was already corrupted by Autel programmer.
Had to use "Force Unlock" with VVDI Prog and it worked but Dflash was already wiped, partition config was wiped and Pflash was seriously corrupted.
So i revived that 1N35H memories with what i had backed up before, did the LOCK again and tried again with Autel.
Autel killed it again. I don't know about other people experience but mine Autel XP400Pro is a "No GO" fot 1N35H MCU.
I am not saying VVDI Prog is the golden tool because some people using VVDI Prog have killed the BCM's.
For example i tried to read the 1M35H and 5M48H mcu with VVDI Prog but 12V power supply disconnected - it did not read anything. But it also killed these memories like Autel.
Maybe Autel has bad power delivery to MCU where 5M48H tends to survive but 1N35H is way too sensitive and dies.
Anyone have experience with UPA programmer(original not Chinese clone)???
Immo/ECU/BCM CS:
Since i have both BCM's and ECU from the same car i did some research on IMMO CS information.
These are only my findings and I have no idea but maybe it can help to adapt used module to the car for someone using this info.
ECU is EDC17CP44 like VAG cars i tried to use VVDI2 to calculate CS from eeprom and flash and it worked.
In front BCM Dflash there are 2 CS. 1 for KEY programming and 1 that is exactly the same as VVDI2 calculated ECU CS.
In rear BCM Dflash there are 1 CS that is a MIX from both ECU CS and Key programming CS.
CS:
1B EE E3 28 DB 1A 39 7F 04 FA 01 A8 F2 8C E4 F7 - ECU (EDC17CP44) CS calculated with VVDI2
A1 64 65 AE F1 B7 0A 3A 6C EB 56 7E A1 34 92 BD - Front BCM CS for key programming (located in Dflash 0x0021D and 0x0211D)
1B EE E3 28 DB 1A 39 7F 04 FA 01 A8 F2 8C E4 F7 - Front BCM CS for ECU sync (located in Dflash address 0x0022D and 0x0212D)
1B EE E3 28 F1 B7 39 7F 04 FA 56 7E F2 8C E4 F7 - Rear BCM CS (located in Dflash 0x00202 and 0x02402) is a mix
where 5th, 6th, 11th and 12th byte are from key programming CS and other bytes are from ECU sync CS
All front BCM's location address in Dflash memory are the same for VIN, SW nr, HW nr, both CS.
Going to have car shipped to Porsche in Charlston, SC 90 miles away. Closest place with a PIWIS system to reset BCM if that is the
no start issue. My guess is c11005 is telling me it has restricted the cars ability to crank the motor over.
I used an EPROM programmer to reconfigure my 986 so I could run a 996 instrument cluster in the 986. It worked well but I am
not comfortable with attacking the BCM.
More up dates to follow in a week.
